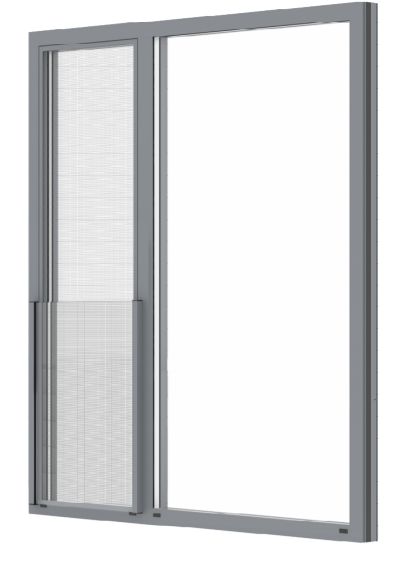

Tuscan 100Series Thermal Break Tilt and Turn Sliding Window
video show
Product introduction

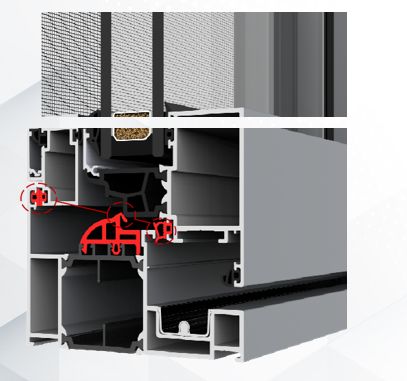

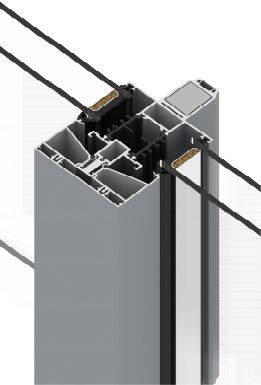

The frame composite profile adopts an outdoor large-face design and an indoor minimalist face design, and is made of 6063-T6 material (with a 30% increase in tensile strength and a 60% increase in yield strength). This further enhances the structural strength of the window while making the window's appearance more streamlined.

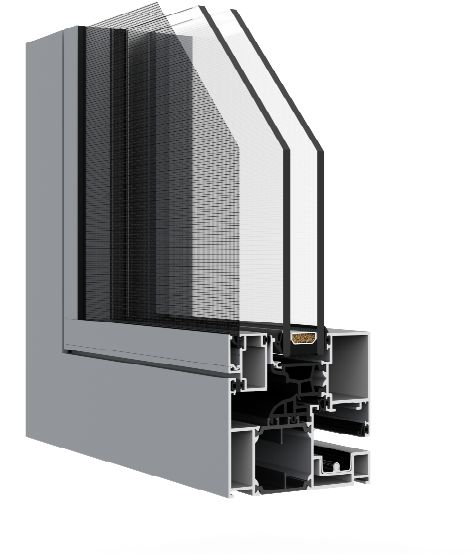

The Frame/Sash adopts 39mm weather stripping combined with vertical thermal chamber structure,provides a constant and comfortable temperature,regardless of the weather.
It features a three-layer sealant strip design: exterior profile joint seal, thermal break joint seal, and interior profile joint seal.
The middle rubber strip adopts the whole frame welding design: the four corners of the rubber strip use the mold welding process, no fracture, no crack, long service life, strong sealing performance.
Open the handle horizontally at 180 °, pull indoors, Translate glass sash, Squeezing closure. Handle horizontal 90°, rotate, compress glass sash tightly
The method of translation opening
Open the handle horizontally at 180 °, window sash drifts., the window frame and sash are sealed with a full circle rubber strip, squeezing closure

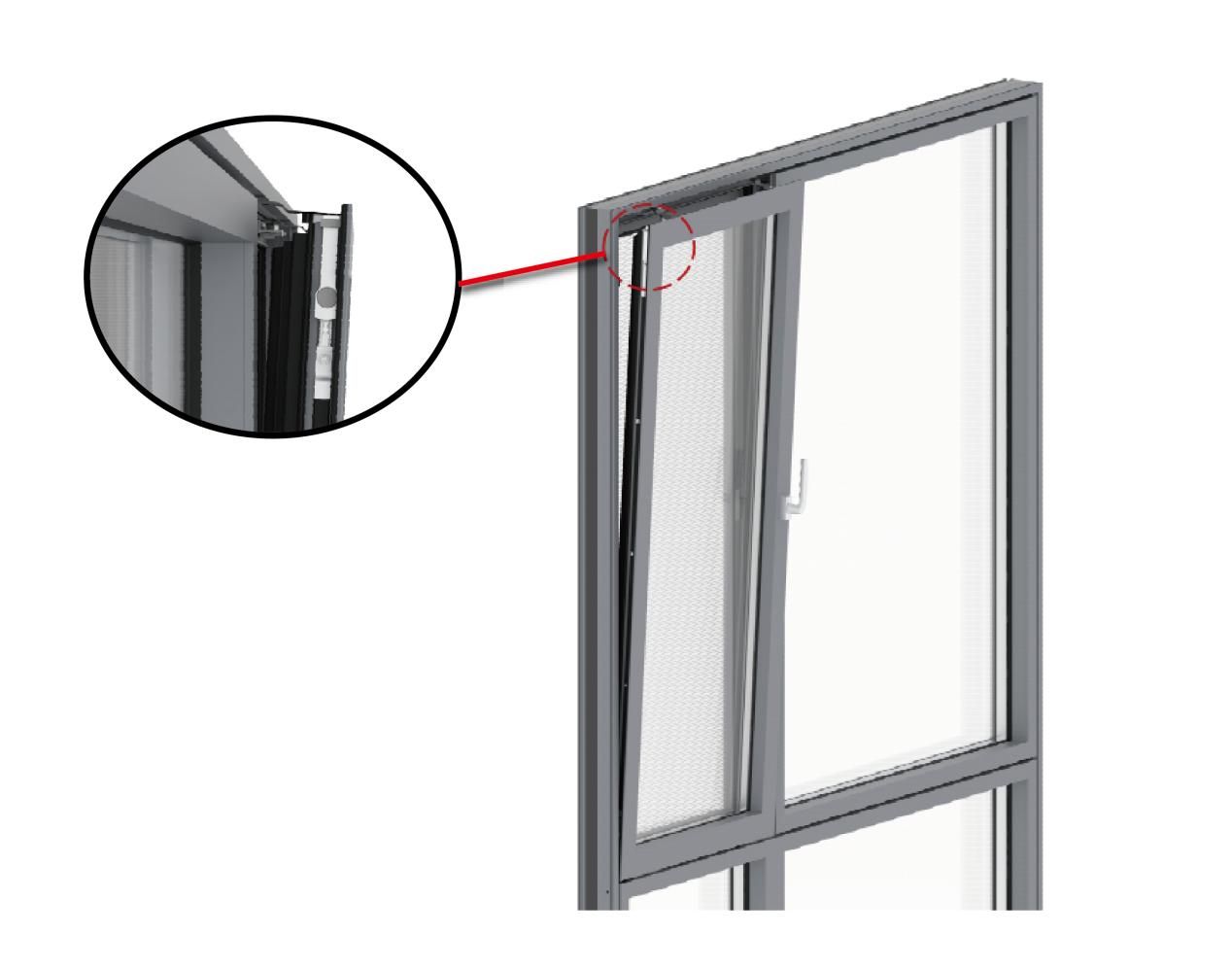

The method of internal reverse opening
Rotate the handle up 90° without obstruction, activate the internal reverse micro ventilation mode, equipped with an anti misoperation device, safe and reliable.

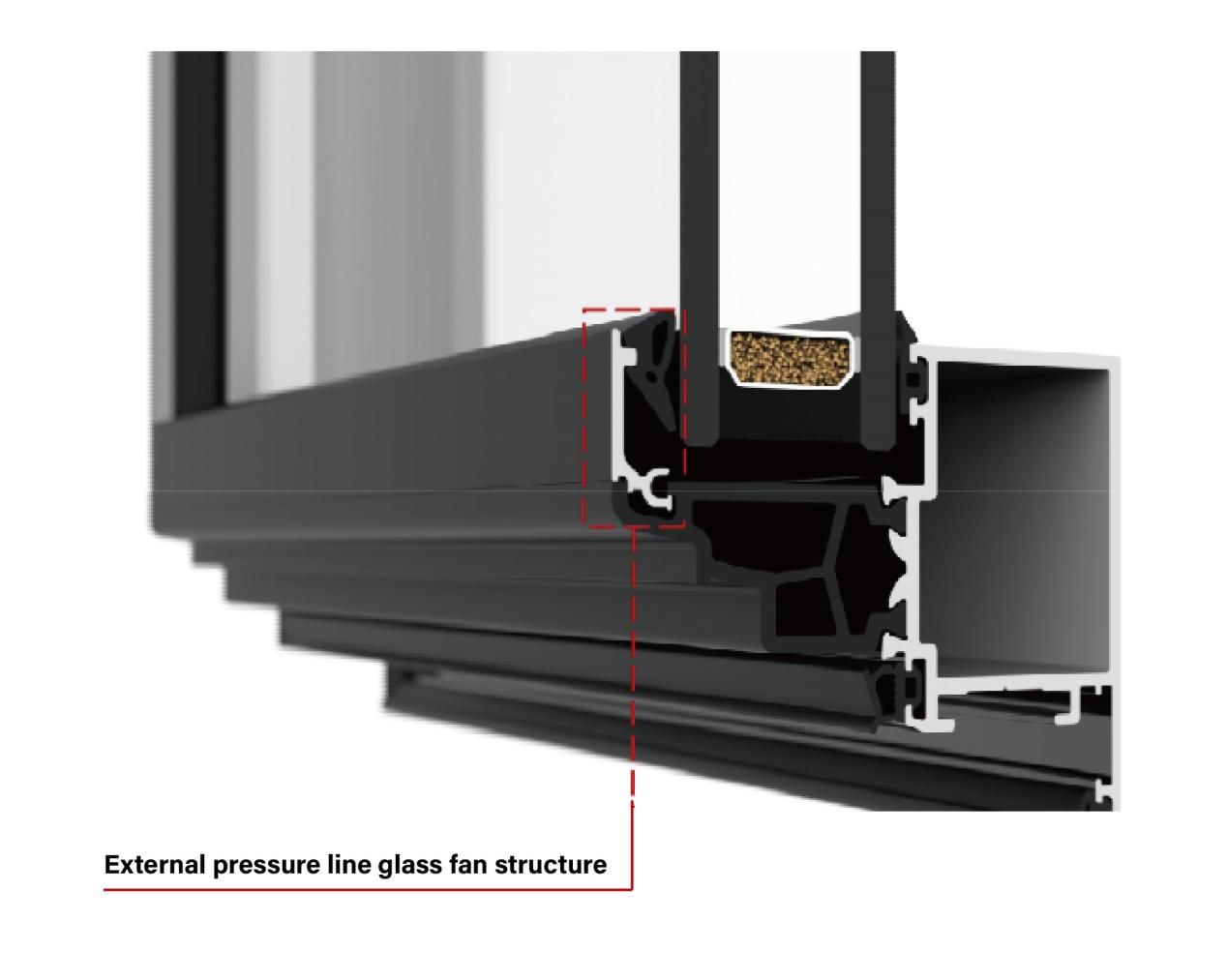

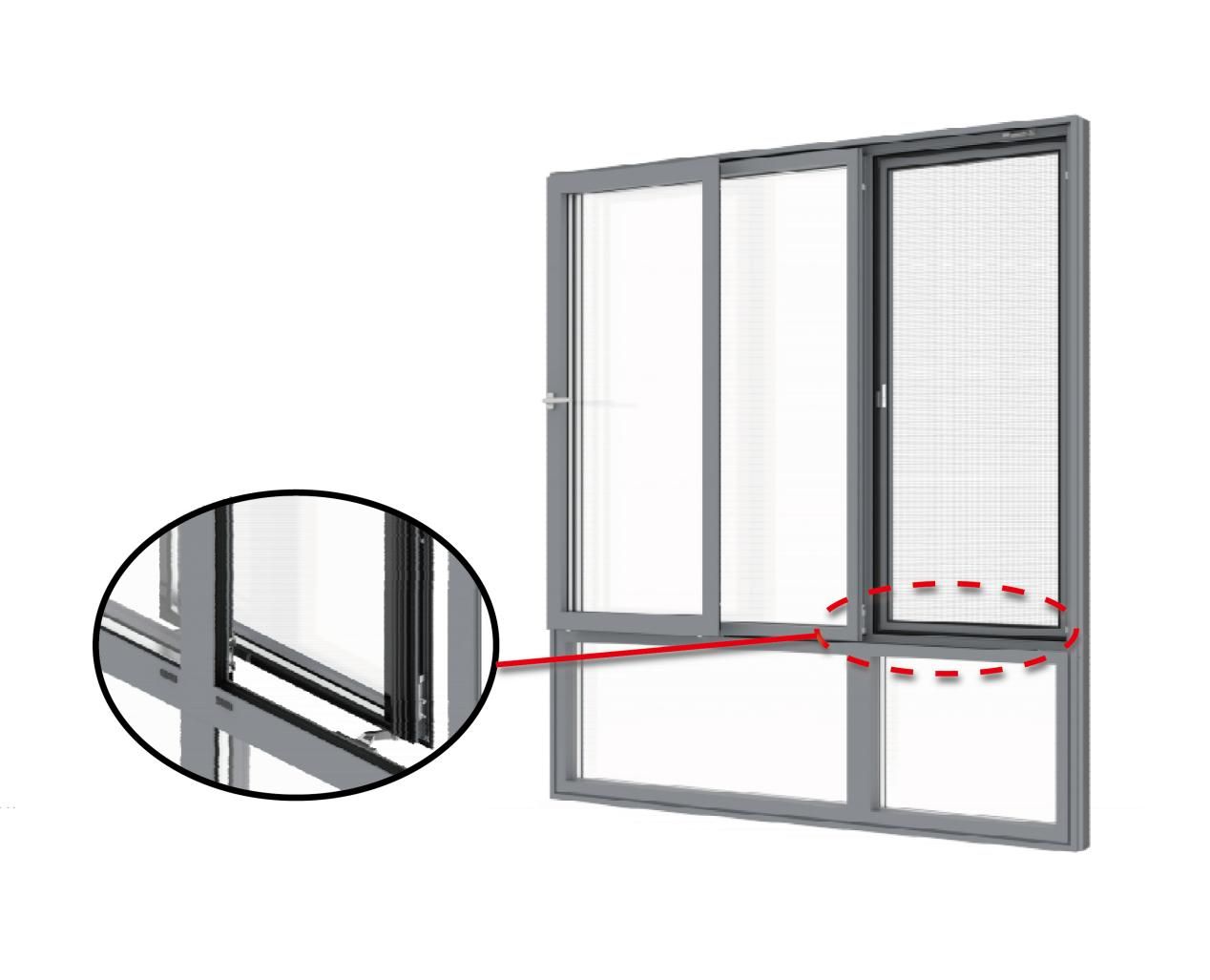

Hidden sash structure
The pressure line of the glass sash is installed outdoors, without an external profile structure, and the internal view is more concise and beautiful
Borderless design
The integrated color of the glass sash pressure line and heat insulation strip, that makes the external viewing surface of the glass sash more simple and atmospheric
Hardware opening form: internal reverse + translation sliding
Hardware load-bearing: 70KG
Sash width size: 00 -900mm
Sash height size: 700 -2400mm
Glass sash opening translation distance: 84mm
Standard HOPPE handle (Open retail options for all straight handle styles)
Provide various forms of reinforcement scheme design: The specific strengthening plan shall be subject to calculation
Widen the mullion design: higher material strength and greater stability;
When Height ＞2400mm, external reinforcement is required (Standard of using as the same as the Asian Games 100 double inwards opening window)
Optional external glass guardrail configuration
Maximum height of window sash 2400mm, Maximum width of window sash
The safety height of the guardrail is 1100mm above the ground (including the platform)

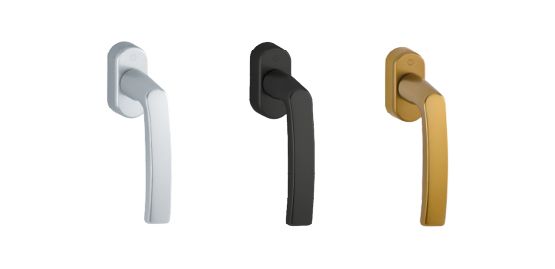

Standard HOPPE handle (imitation steel color), provide various square axis handle styles and color options
Conventional optional glass configuration table
| Glass types | Glass | Glass specifications | ||||
| Location | ||||||
| Single hollow | Open sash | 5G+19A+5G | 6G+16A+6G | — | — | — |
| Glass | Fixed | 5G+27A+5G | 6G+27A+6G | 8G+27A+8G | 10G+24A+10G | 12G+16A+12G |
| Double hollow | — | — | — | — | — | |
| Glass | 5G+16A+5G+16A+5G | 6G+12A+6G+12A+6G | — | — | — | |
| Laminating hollow glass | 5G+12A+5G+0.76Pvb+5G | — | — | — | — | |
| 5G+24A+5G+0.76Pvb+5G | 6G+19A+6G+1.52Pvb+6G | — | — | — | ||
| Laminating double hollow glass | — | — | — | — | — | |
| Magnetic louver | 5G+19A+5G | — | — | — | — | |
| 5G+26A+5G | 6G+26A+6G | — | — | — | ||
| Luminous energy louver | — | — | — | — | — | |
| 5G+27A+5G | 6G+27A+6G | 8G+27A+8G | 10G+27A+10G | 12G+21A+12G |
Glass adaptation range: frame 36-51mm; Sash 24-31mm, place order of special thickness glass need to consult sales customer service
Introducing the Tuscan 100Series Thermal Break Tilt and Turn Sliding Window, a revolutionary addition to modern architectural design. This innovative window system combines the latest in thermal break technology with the versatility of tilt and turn and sliding functionalities, offering a seamless blend of style and functionality.
The Tuscan 100Series features a borderless design, creating a sleek and contemporary aesthetic that seamlessly integrates with any architectural style. Its hidden sash structure further enhances the clean and minimalist look, providing unobstructed views and allowing natural light to flood into the living space.
With the ability to tilt and turn, the Tuscan 100Series offers unparalleled flexibility in ventilation and ease of cleaning. The tilt function allows for secure ventilation, while the turn feature enables the window to fully open inwards, making it effortless to clean both the interior and exterior surfaces. Additionally, the sliding option provides a smooth and effortless operation, allowing for a translation opening way that maximizes space and functionality.
Crafted with precision engineering and high-quality materials, the Tuscan 100Series Thermal Break Tilt and Turn Sliding Window is designed to enhance energy efficiency and thermal performance. The thermal break technology effectively minimizes heat transfer, providing a barrier against external temperatures and reducing energy consumption, ultimately contributing to a more sustainable and eco-friendly living environment.
Whether for residential or commercial applications, the Tuscan 100Series offers a versatile solution that meets the demands of modern architecture. Its combination of cutting-edge design, advanced functionality, and energy efficiency makes it a standout choice for those seeking a window system that delivers both style and performance.
Experience the perfect fusion of form and function with the Tuscan 100Series Thermal Break Tilt and Turn Sliding Window, and elevate your space with a window solution that redefines modern living.
