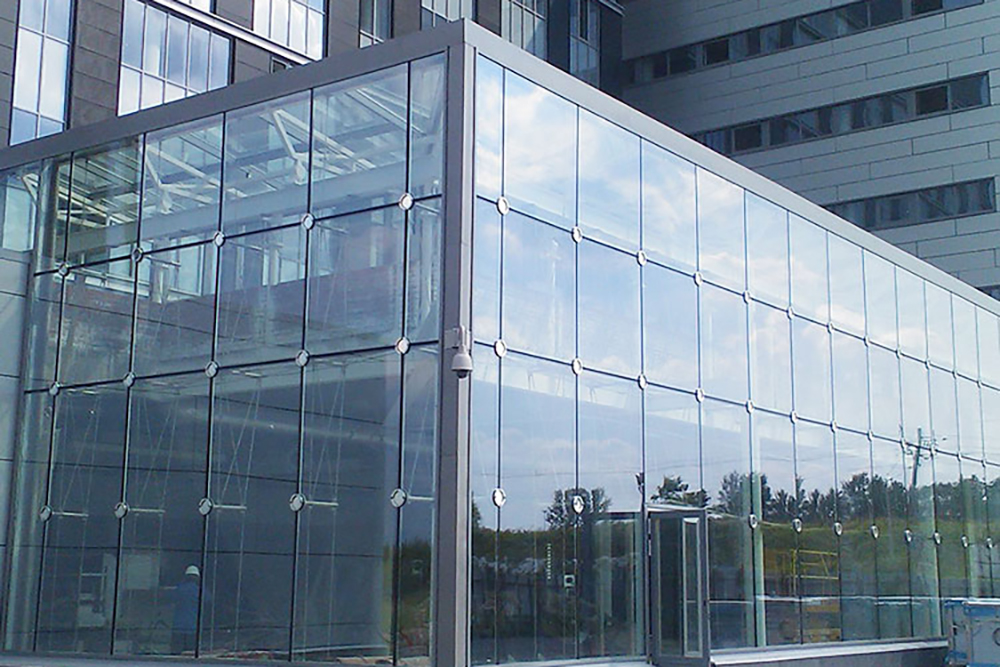

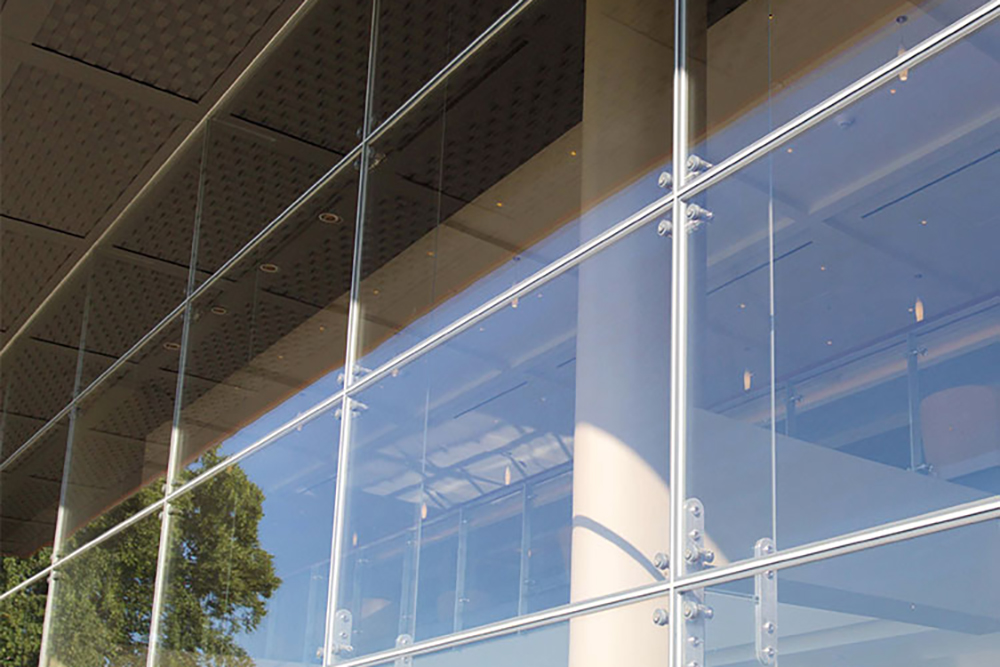

Steel Truss Point Supported Spider Glass Curtain Wall System

The design features a transparent effect that seamlessly integrates indoor and outdoor spaces. The delicate components and beautiful structure achieve a perfect blend of exquisite metal elements and glass decorative art, while the diverse support structures cater to various architectural designs and decorative effects

Point-supported glass wall structures can be constructed using glass ribs, steel tube members, trusses, cable-stayed trusses, or cable net systems. For point-supported glass curtain wall, each individual glass panel should have a minimum thickness of 8mm; the same requirement applies to laminated glass and insulating glass.

product details

video show

Product introduction

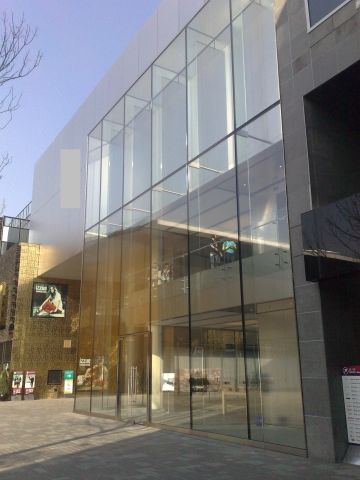

Glass Fin Point-Supported Glass Curtain Wall:

A glass curtain wall featuring panels and support structures made entirely of glass, with glass ribs suspended from the main structure. Connection plates or steel spiders are mounted on the glass ribs, and the corners of the panel glass are drilled to allow bolts in the steel claws to be threaded through and tightened

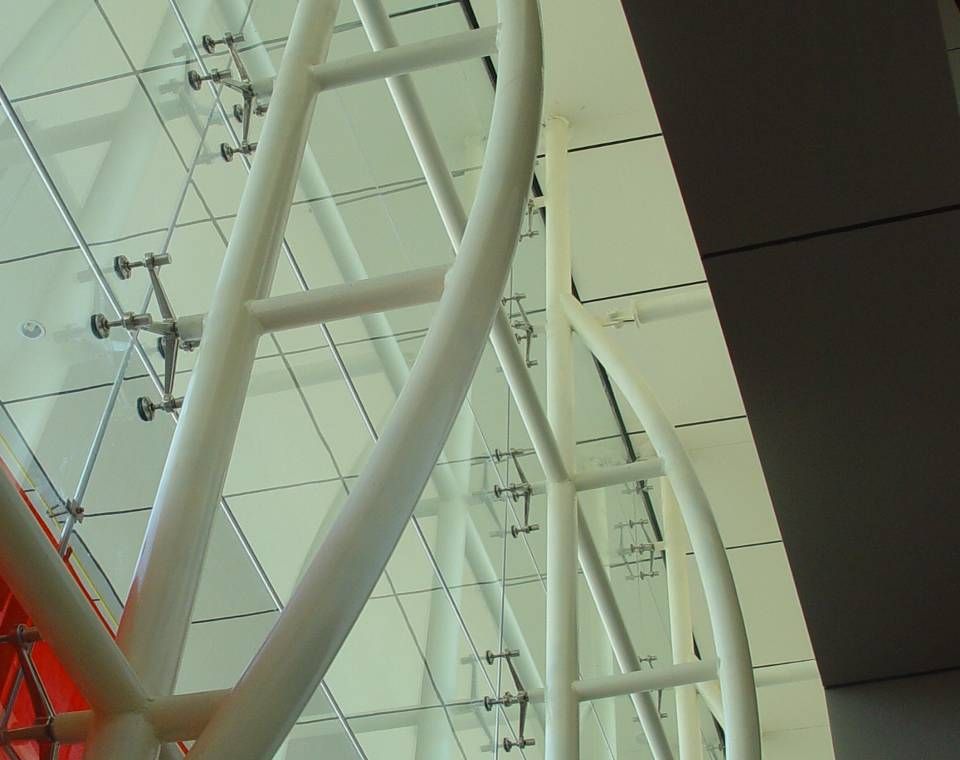

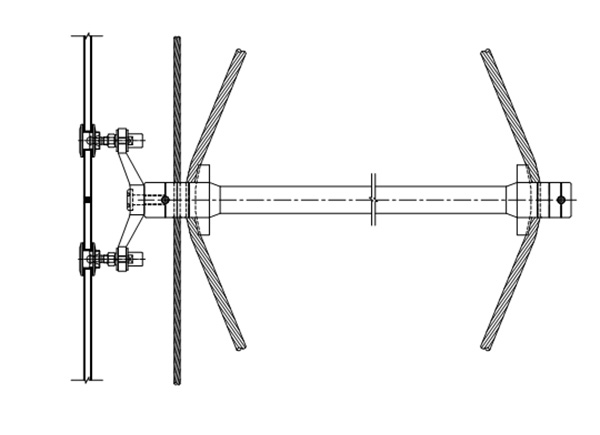

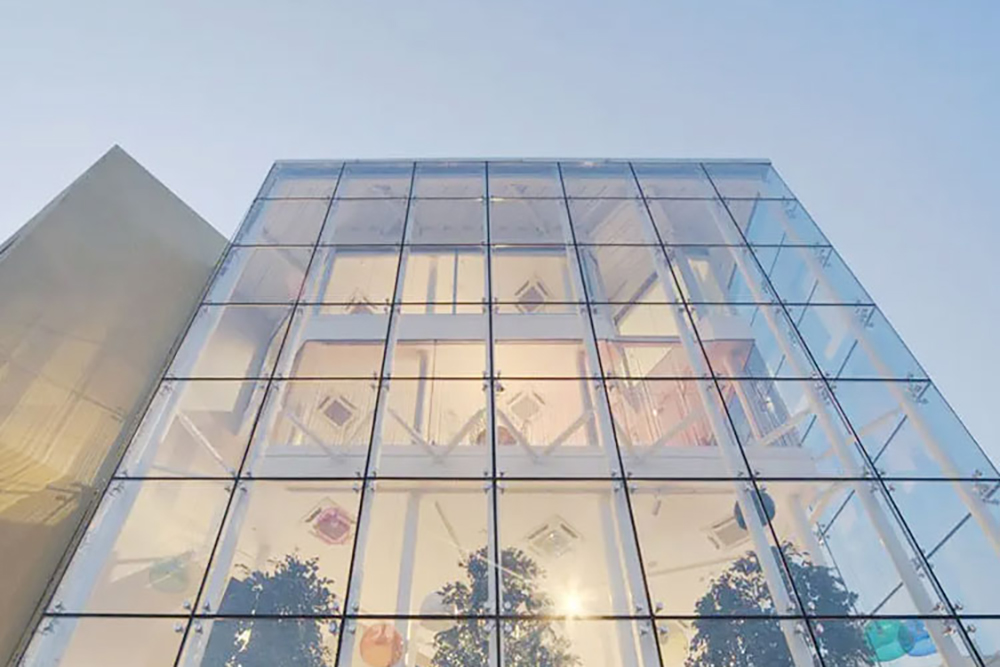

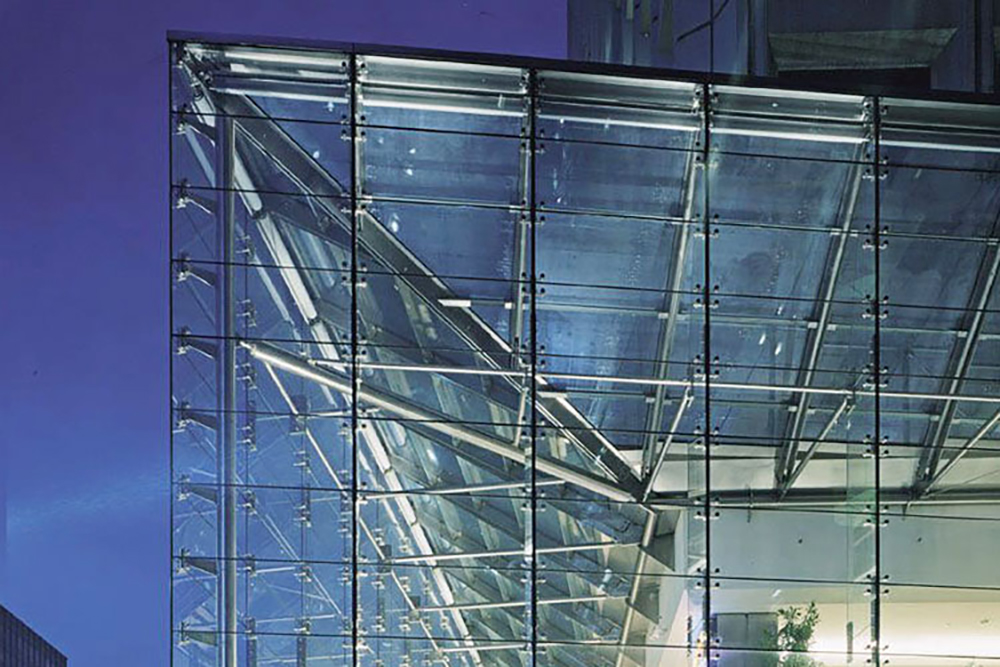

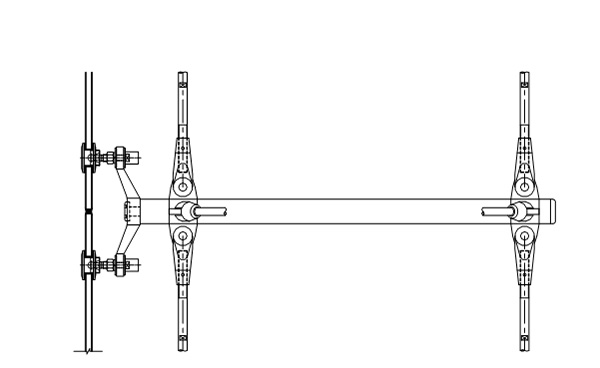

The steel truss point-supported glass curtain wall utilizes a truss support structure, comprising chord member, vertical web members, and diagonal web members. The tension and compression of the truss members and the net structure leverage the material's tensile and compressive properties to resist loads.

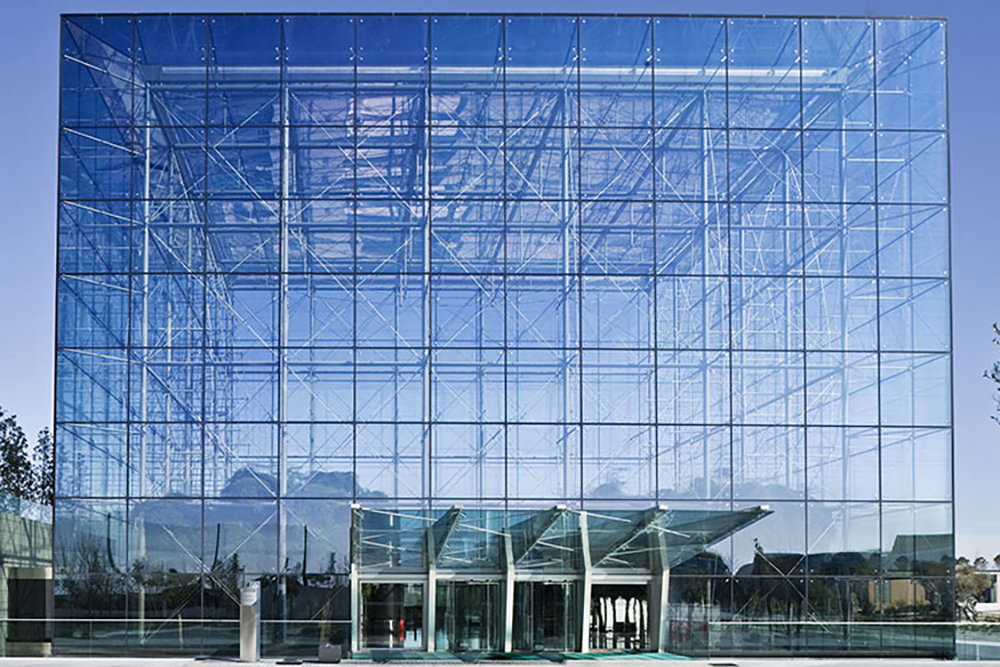

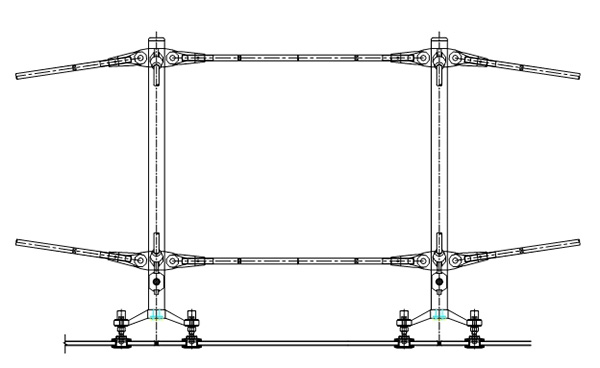

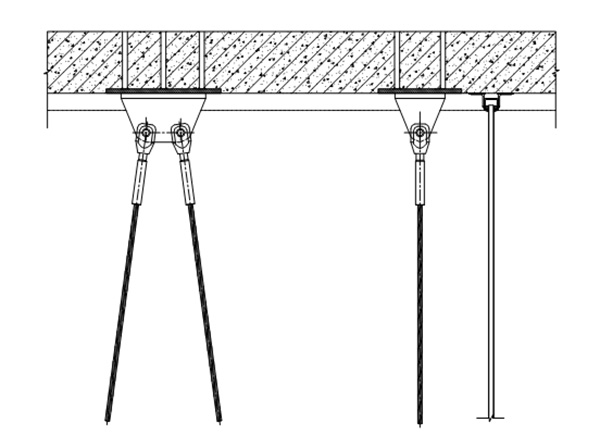

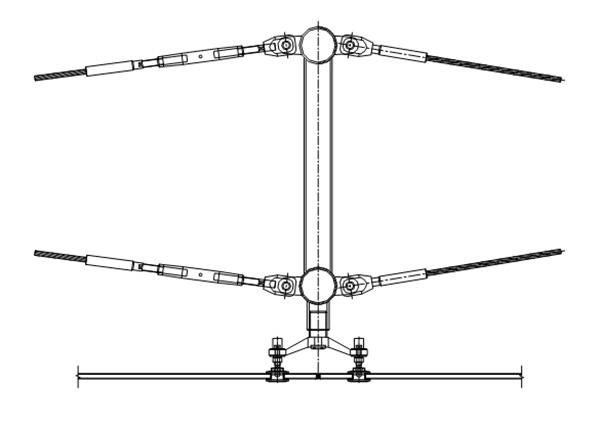

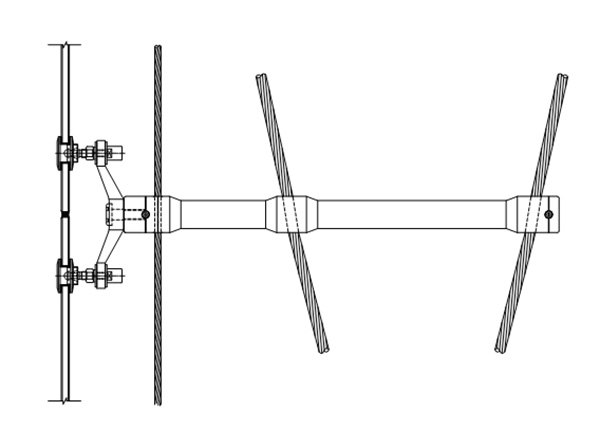

The cable-stayed glass curtain wall is supported by a flexible stainless steel cable structure rather than a rigid truss structure. The point-supported full glass curtain wall, connected by cables, utilizes a pre-stress double-cable structure that is typically designed to be symmetrical. This design accounts for the need of the curtain wall to withstand both positive and negative wind pressure. In positive wind pressure, the load-bearing cables become stability cables in negative wind pressure, while in negative wind pressure, the load-bearing cables serve as stability cables in positive wind pressure

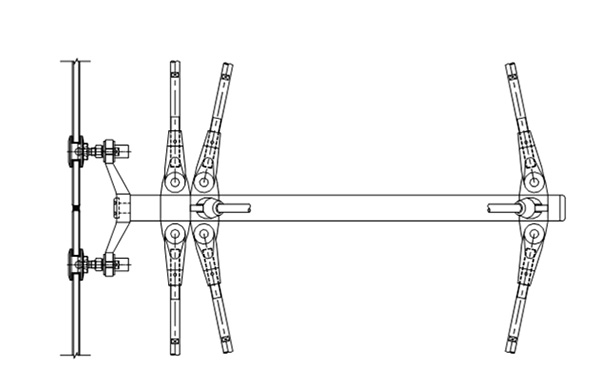

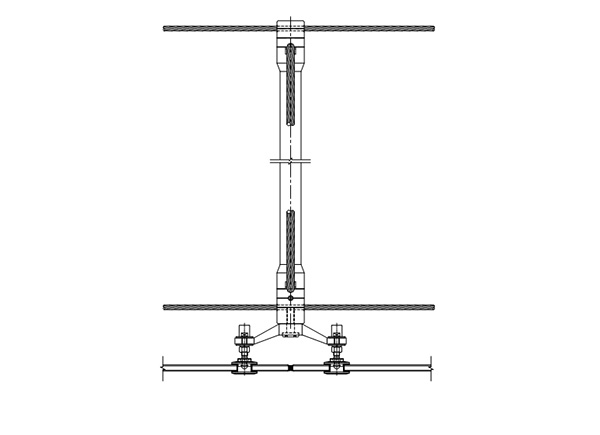

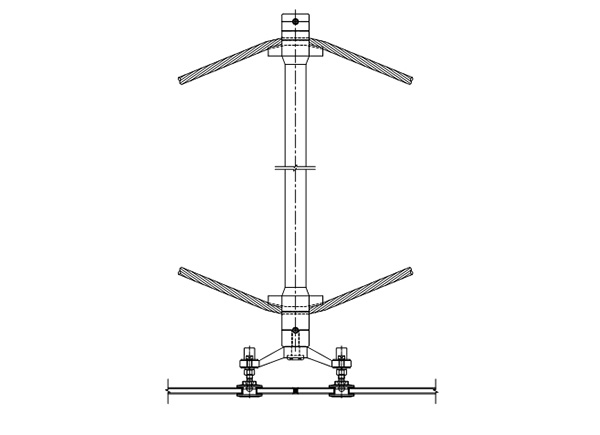

"The cable-supported glass curtain wall is upheld by a flexible cable structure rather than a rigid truss structure. The point-connected full glass curtain wall with cables adopts a pre-stressed double-layer suspension structure. It is typically designed to be symmetrical because the curtain wall must withstand both positive and negative wind pressures. The tension cables that handle positive wind pressure become stability cables when facing negative wind pressure, while the tension cables that handle negative wind pressure become stability cables in the presence of positive wind pressure."

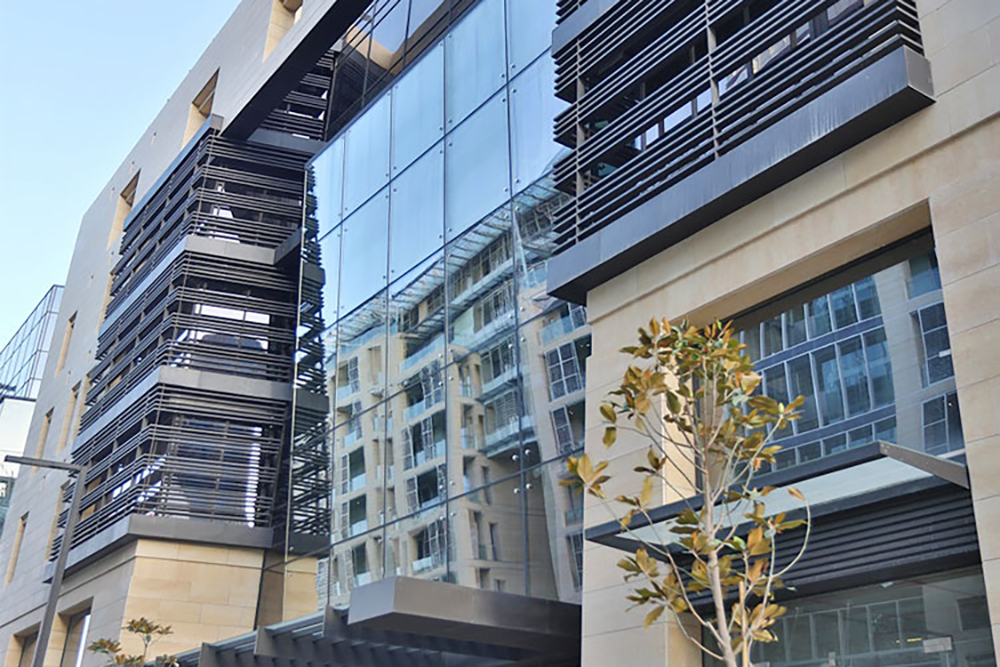

A full glass curtain wall offers the advantage of eliminating glass curvature caused by its own weight, resulting in a visually appealing and transparent space with a safe and reliable effect. Its load-bearing capacity primarily relies on metal clamps

Glass Thickness mm	10,12	15	9
Max.height (M)	4	5	6

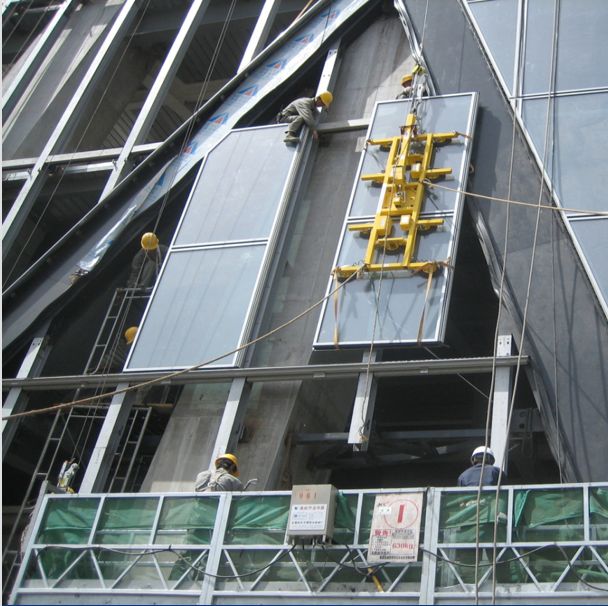

The features of unitized curtain wall:

1. The primary factors contributing to the deformation of the building's structural framework include construction errors, uneven settlement, continuous micro-vibrations post-installation, and seismic events. Unitized curtain walls are assembled by interlocking adjacent panels, offering exceptional elongation and deformation capabilities.

2. Each unit panel in a unitized curtain wall is a self-contained entity, resulting in minimal relative displacement of individual components within each panel. Even after undergoing elongation and deformation, the integrity of the panel remains intact.

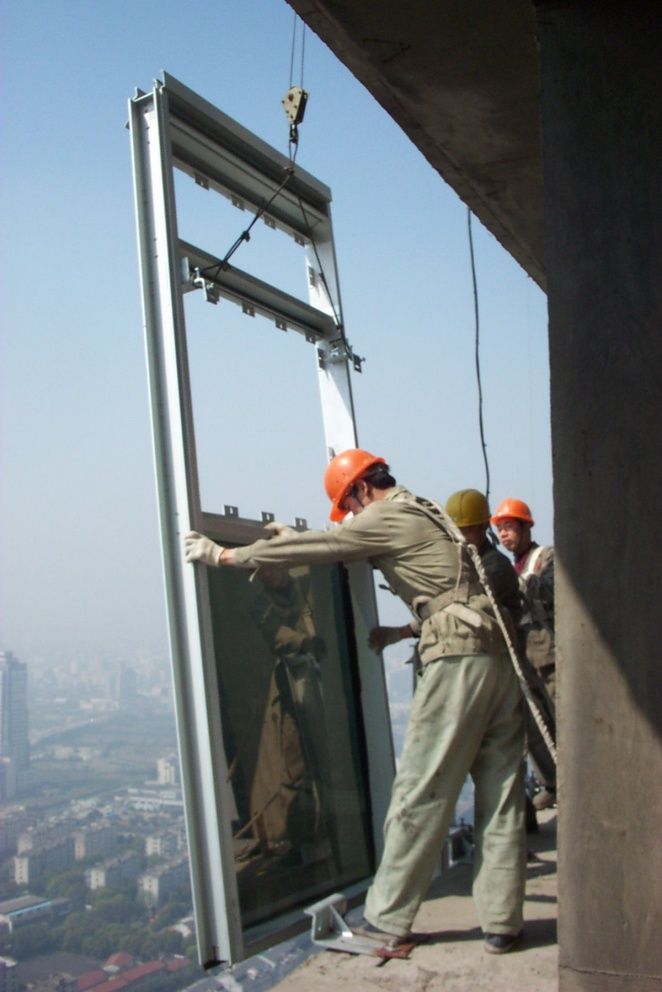

3. As unitized curtain walls are prefabricated off-site, they can be directly installed upon delivery without requiring extensive on-site storage space. Compared to traditional stick frame curtain walls, they occupy approximately 30% less site storage area and effectively reduce scrap rates associated with semi-finished products

The unitized exposed frame glass curtain wall system, unitized invisible frame glass curtain wall system, and unitized semi exposed frame glass curtain wall system possess the following features:

* All unit modules are precision-assembled in the factory workshop to ensure high assembly accuracy.

* Rapid installation speed and short construction period facilitate efficient protection of the finished product.

* Simultaneous construction with the building's main structure contributes to an overall reduction in the building's construction period.

* The structure employs a gradual pressure relief principle and incorporates an internal drainage system to effectively prevent rainwater seepage and air infiltration.

* Special weather-resistant rubber strips seal all panel seams, promoting self-cleaning of the curtain wall and reducing surface pollution.

* Panel connection via plug-in connections enhances earthquake resistance of the curtain wall.

PHONPA glass curtain wall design and products represent a fusion of innovative design, advanced engineering, and practical functionality. Whether it’s for a commercial, institutional, or public building project, our systems offer a compelling solution for achieving striking architectural designs with unparalleled performance and durability
