Star Diamond 80 Series Thermal Break Folding Door
video show
Product introduction
Gate type rule: N+0, N+1, or N+N, N ≥ 3 and must be singular;
Install lock inside and the key outside the room;
There are two design options: internal folding and external folding;
Can only make odd numbered sash, cannot make even numbered sash
Product process details display

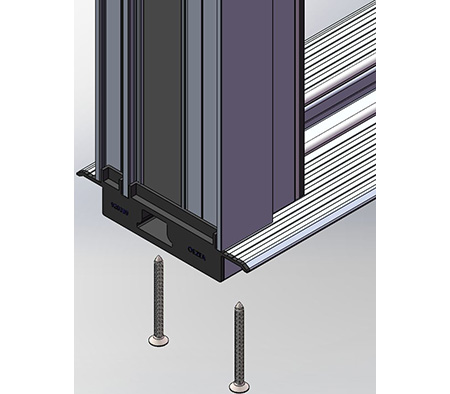

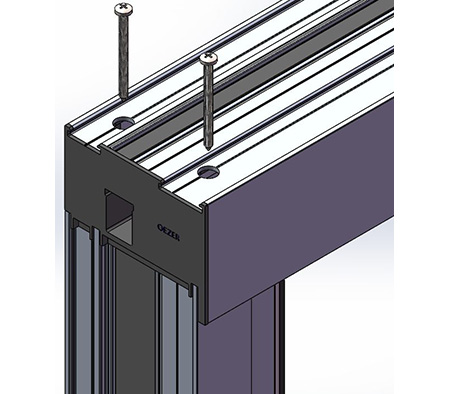

The fixed window adopts 80 series splicing

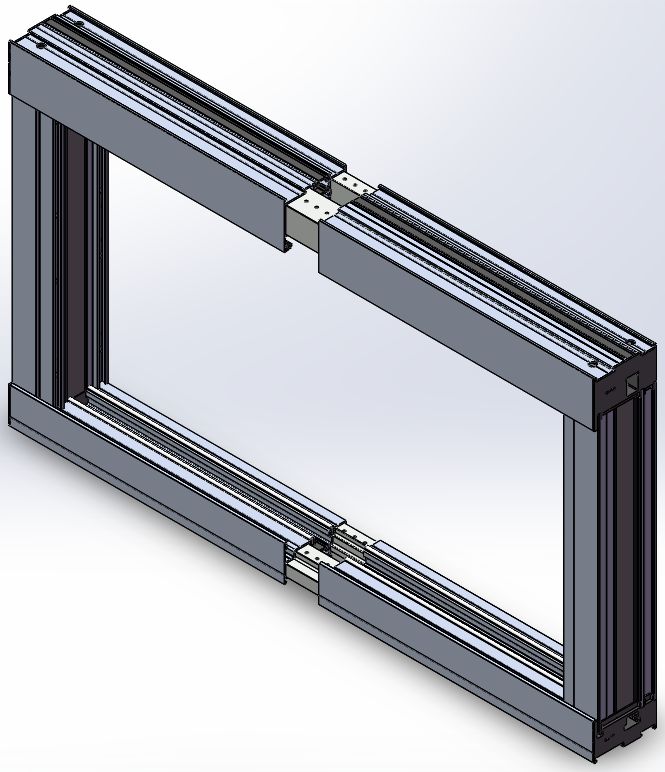

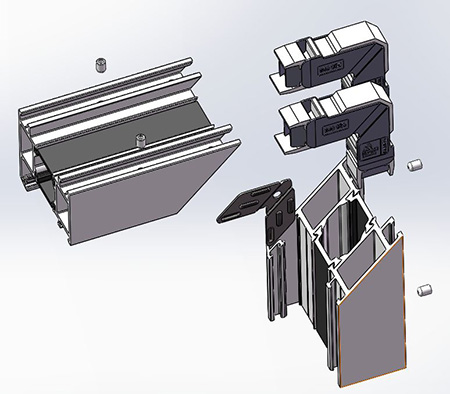

When the door width is greater than 6000, it adopts connection scheme
Narrow sash design

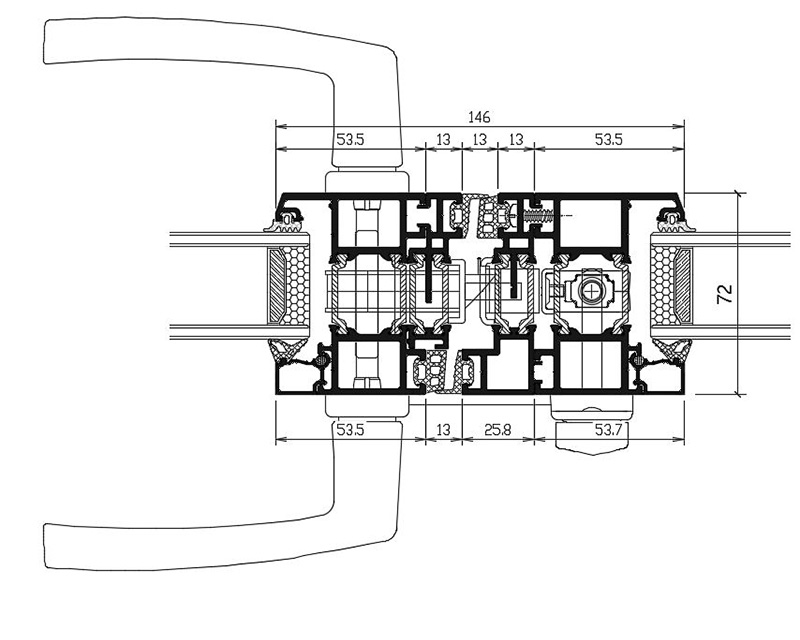

The locked door sash is flush design for both inside and outside
The total width of the visible surface of the folding sash is up to 120mm

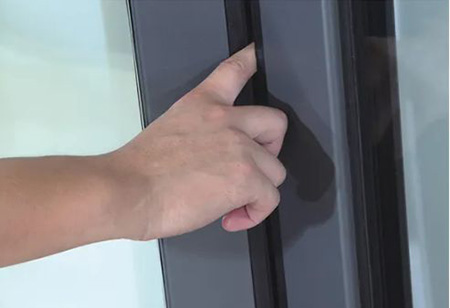

“Anti-pinch” structure
13mm gap, anti-trap design, effectively avoiding pinching injuries
Folding door - adjustable function
“Gap” adjustment design, 0-5mm function adjustable design; It can insert profiles to adjust gaps, adjust door sash balance, reduce gaps to use more smoothly and have better sealing performance

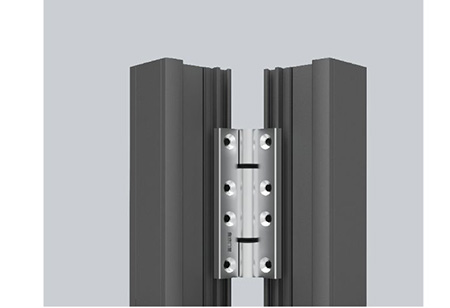

The hardware single sash can bear a weight of 120kg and supports large door sash. The hardware has a more stable load-bearing capacity and has a 9-level wind pressure resistance performance.
Star Diamond 80 Series Folding Door main features

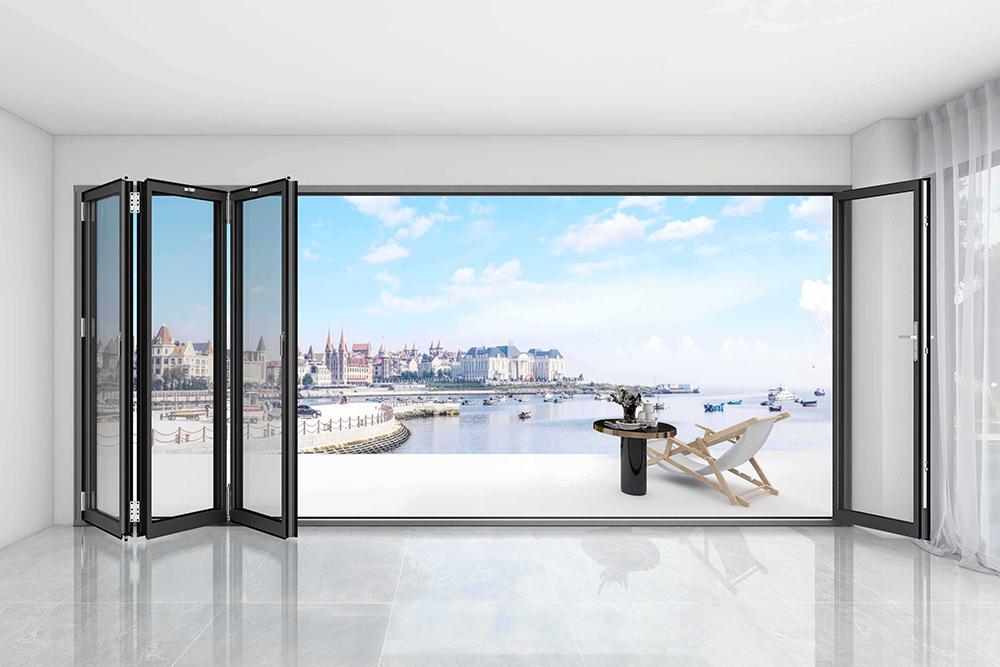

This product is positioned as a high-end thermal break series, mainly suitable for balconies, corridors, swimming pools, etc. Compared with other door types, the folding door has the maximum opening and provides a broad view, achieving good ventilation effect and avoiding a closed and oppressive use experience
13mm anti-trap design, preventing children from getting pinch injured and ensuring safety.
The lower pulley has a larger load-bearing capacity, with a maximum weight capacity of 120kg per single sash hardware, and has a 9-level wind pressure resistance performance.
Imported ROTO lock body and HOPPE handle from Germany, hardware with longer service life.
Star Diamond 80 Series Thermal Break Folding Door product performance:
Design sound insulation performance: 34dB
Design air tightness: up to 1.0m3/(㎡· h) (level 7)
Design water tightness: up to 350Pa (level 4)
Design wind pressure resistance performance: reach 5000Pa (level 9)
Design Uw value [whole window heat transfer coefficient]: Uw=1.8w/㎡ k
Star Diamond 80 Series Insulated Folding Doors, a high-end broken bridge insulated series designed to enhance your living space. This innovative folding door is designed to provide a seamless blend of functionality, beauty and performance, making it ideal for balconies, walkways, swimming pools and a variety of built environments.
Star Diamond Series 80 is crafted with meticulous attention to detail, with a profile base wall thickness of 2.2mm ensuring durability and structural integrity. The standard glazing configuration of 5+27A+5, combined with frame/window insulating strips with a width of 20/29 mm, provides excellent thermal efficiency and sound insulation, creating a quiet and comfortable environment.

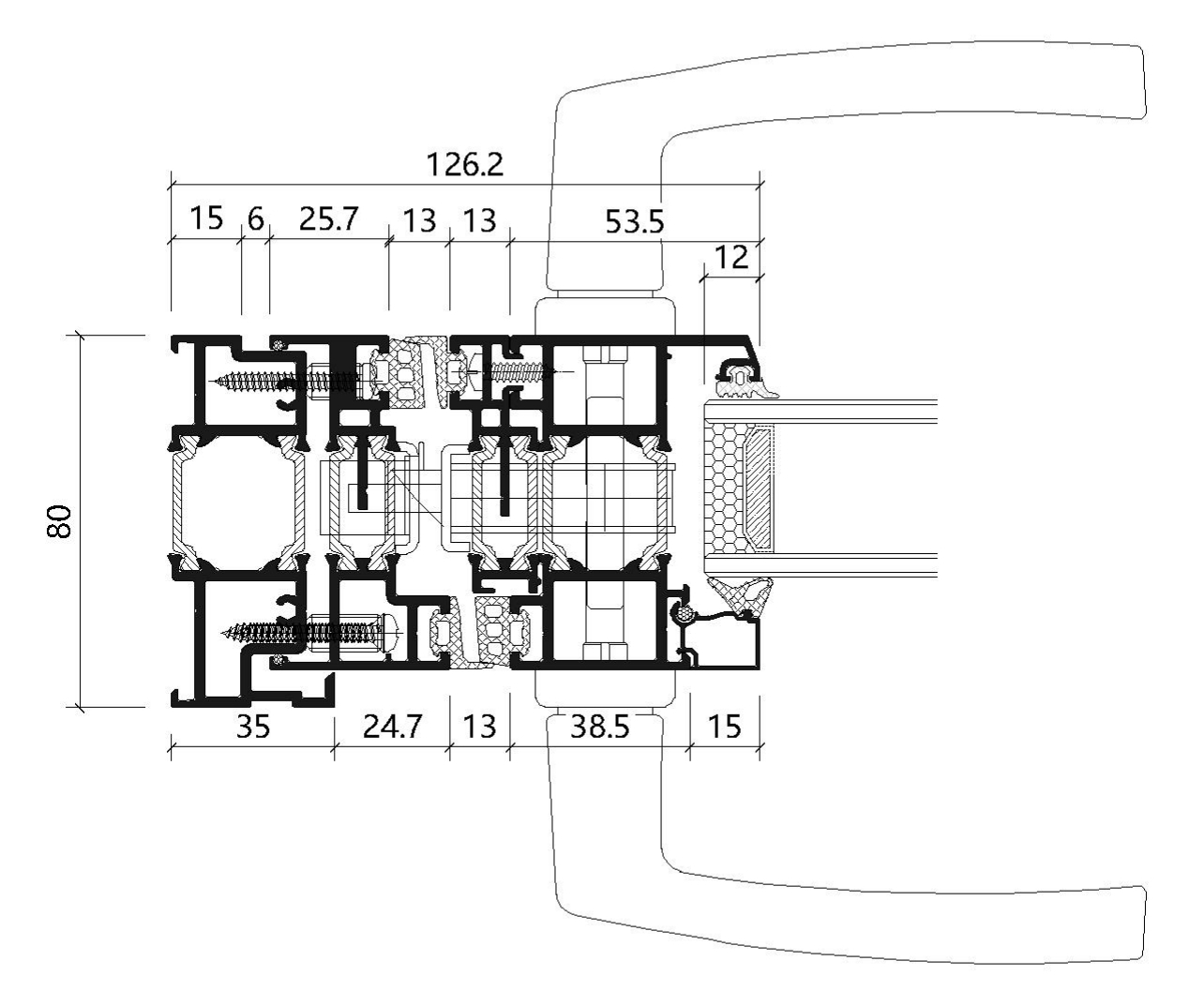

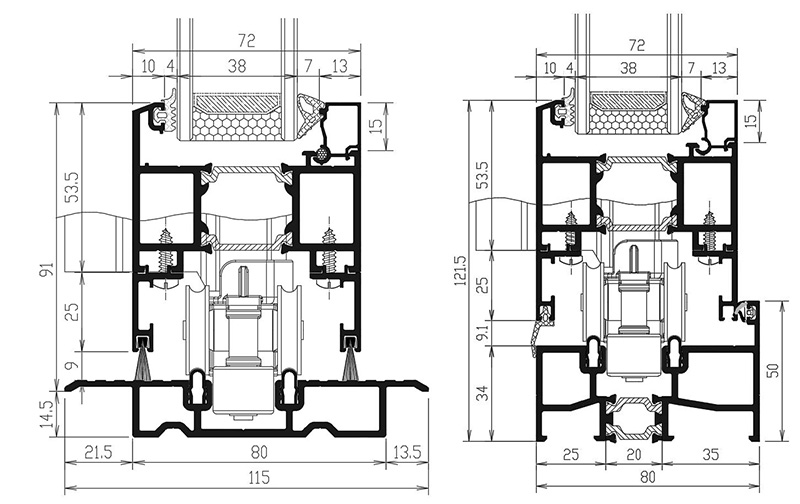

The folding door leaf is 72 mm thick, the door frame is 80 mm wide, and the total visible surface width of the folding leaf is 120 mm, providing panoramic views and maximizing the introduction of natural light. Standard custom folding door fittings and premium HOPPE handles enhance functionality and aesthetics, enhancing the overall user experience.
In terms of performance, the Star Diamond 80 series excels in safety and reliability. The 13mm anti-pinch design ensures children's safety, the lower pulley enhances the load-bearing capacity, and the hardware can withstand a maximum load of 120 kg, giving you peace of mind and long service life. The ROTO lock body and HOPPE handle imported from Germany further ensure the excellent quality and longer service life of the product.
When it comes to performance metrics, the Star Diamond 80 Series sets new standards. The design sound insulation performance is 34dB, the air tightness can reach 1.0m3/(㎡·h) (level 7), the water tightness can reach 350Pa (level 4), and the wind pressure resistance can reach 5000Pa (level 9). This folding door is good at Create a comfortable and safe indoor environment.
In addition, the design U value [full window heat transfer coefficient] of Uw=1.8w/㎡k highlights the product’s commitment to energy efficiency and sustainability, making it an environmentally friendly choice for modern living spaces.
All in all, the Star Diamond 80 series insulated folding doors redefine the concepts of luxury and functionality, achieving the perfect balance of beauty, performance and safety. Enhance your living space with this unique folding door and experience the perfect blend of innovation and elegance.
