Illusory Waltzes 70Series Thermal Break Panoramic Sliding Door
Video show
Product introduction
Facade design

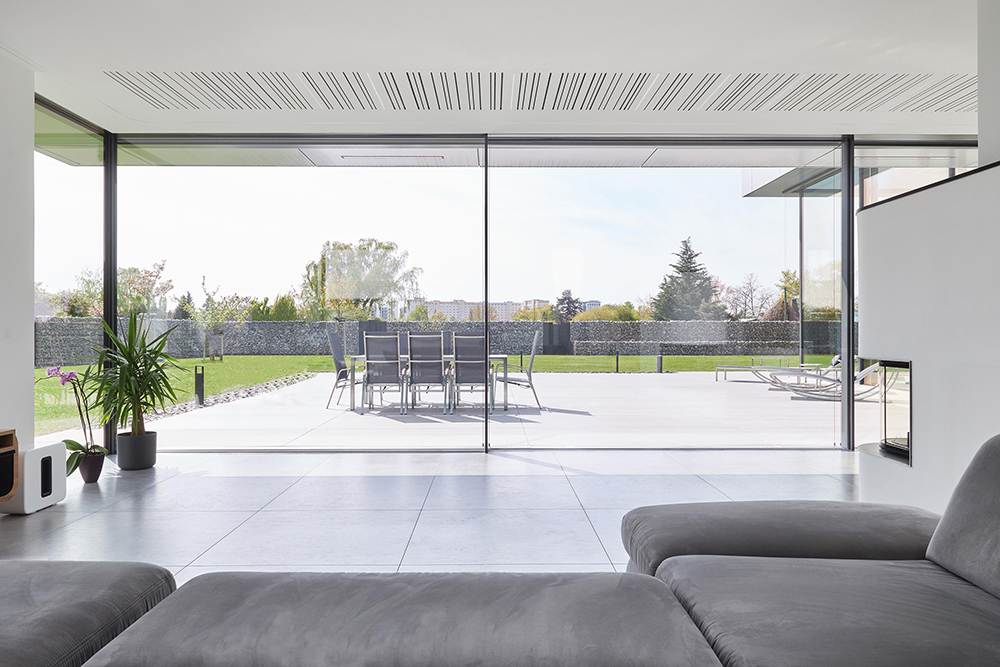

21mm extremely narrow viewing surface; Glass visual area can reach 96%.
Structure design

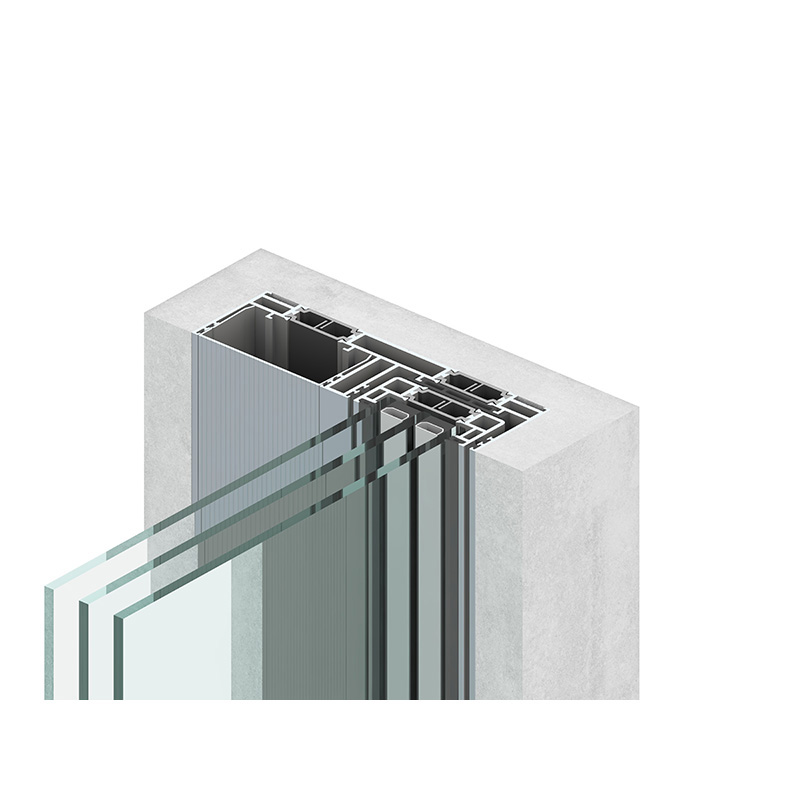

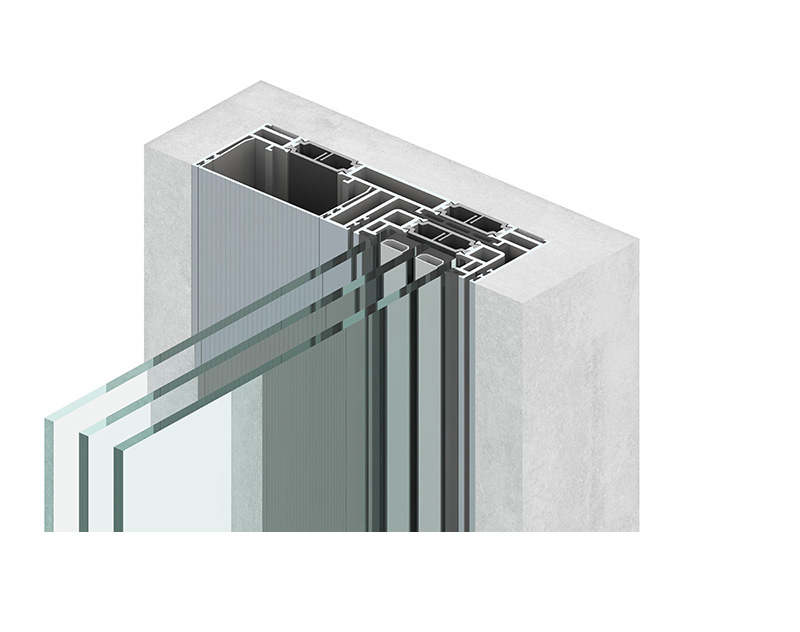

Border embedded wall design: minimizes the impact of the frame on the overall facade of the product, achieving a panoramic effect.
Embedded frame wrapped sash design: The frame and sash are flush, with stronger air tightness and stability, and a wider field of view.
Sealing design

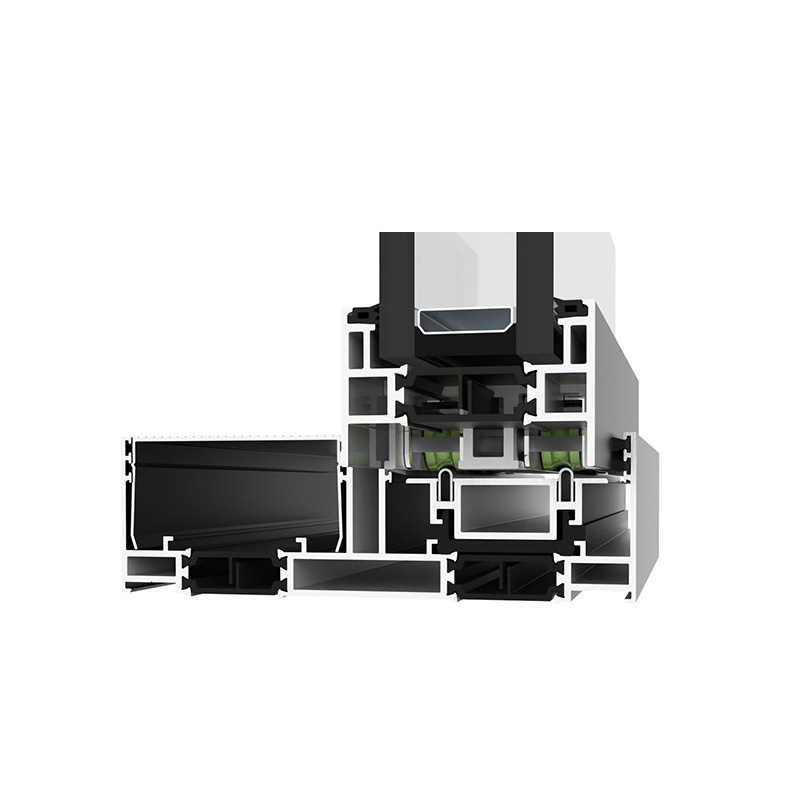

Double Thermal break chamber structure comply with vertical isotherm design: Effectively block heat invasion, energy-saving and reduce emissions.
39mm ribbed insulation strip: Optional 6G+15A+6G+15A+6G.
Improve thermal insulation performance, energy saving measures are readily available.

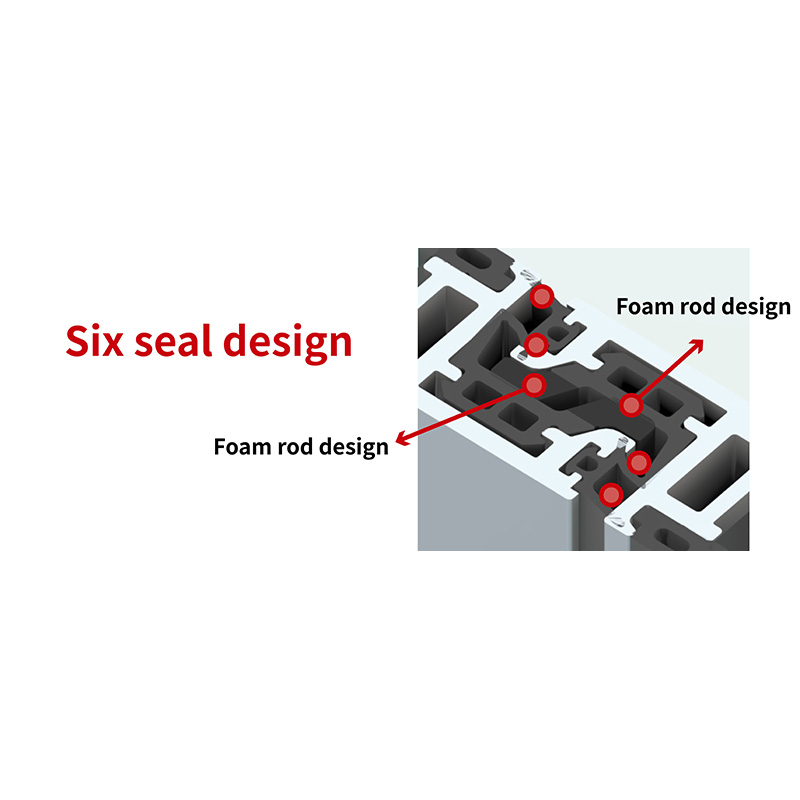

Multi channel sealing design of frame and sash: water tightness performance reaches level 6.
Sealing design
21mm narrow viewing surface, 4mm profile thickness+reinforced hook: wind pressure resistance performance reaches level 9.
Multi channel sealing design: EPDM soft and hard co extruded rubber strips overlap each other, layer by layer sealing.
Flat hook /reinforced hook: Flat hook is used by default for trackless track, and reinforced hook is used for high track single sash size ≥ 2800mm (specific calculation and selection based on actual situation).
Track design
Flat double track design: push-pull stability, smooth structure.

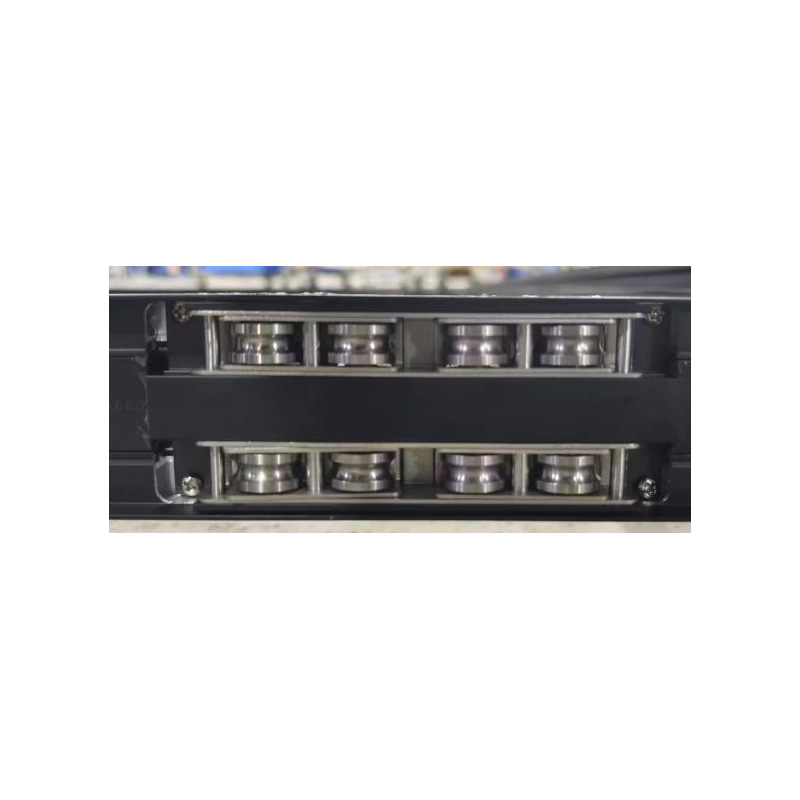

Double row array stainless steel weighing rollers.
4 sets of double row and 8-wheel structure: maximum weight bearing up to 800kg, balancing high appearance and stability.
Lock configuration

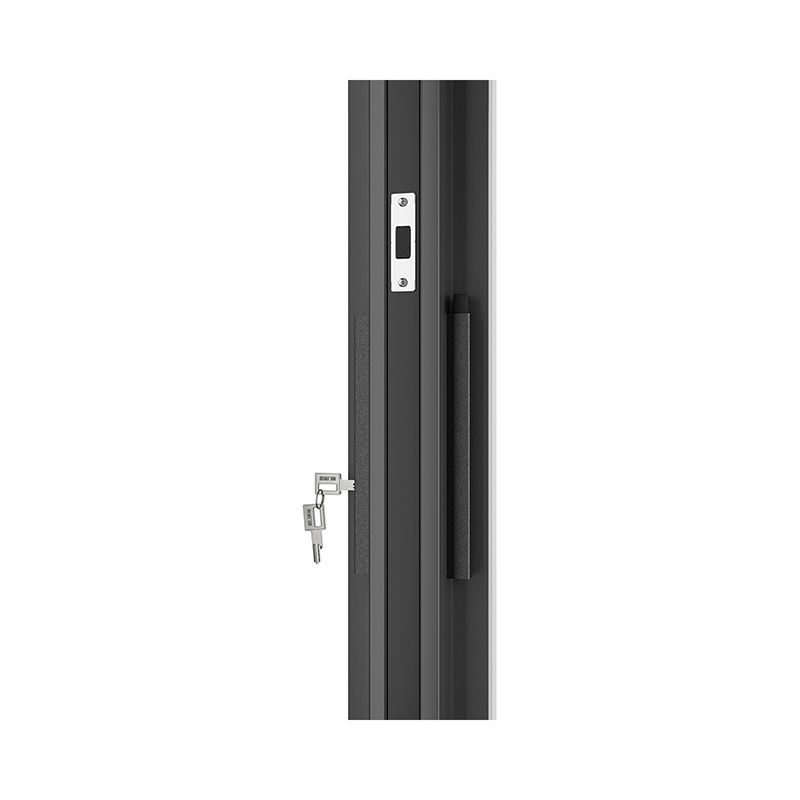

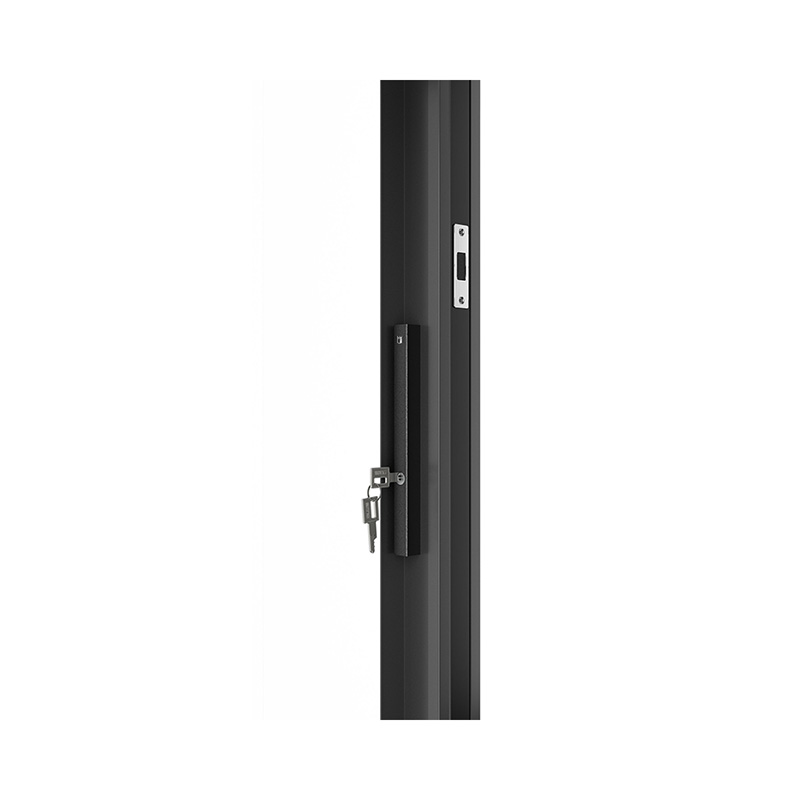

Extremely narrow panel lock: indoor button lock, outdoor standard key lock.
Integrated profile handle: beautiful and simple, more high-end and elegant.
Lock configuration

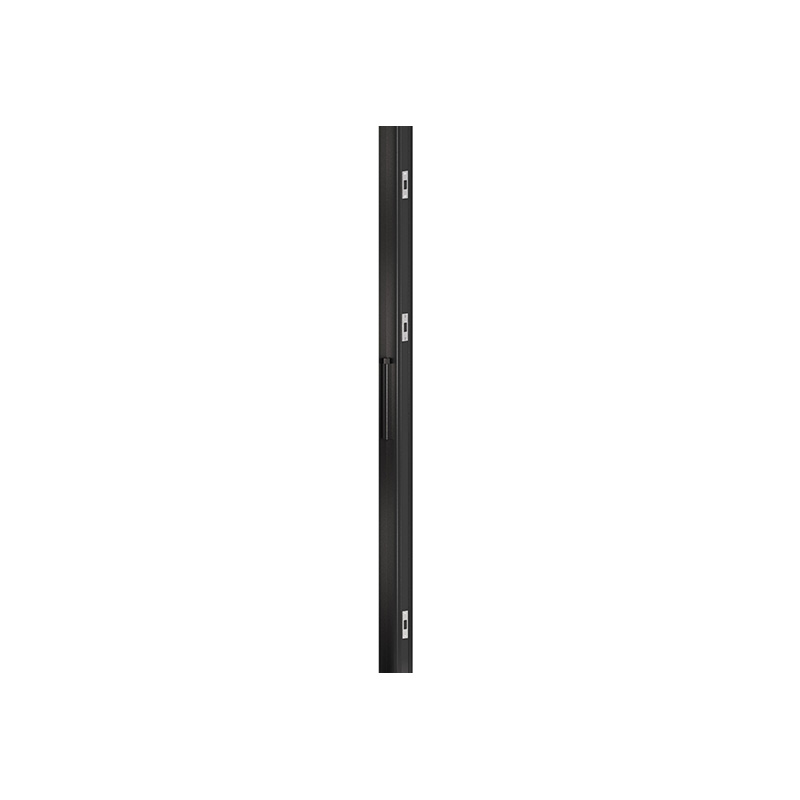

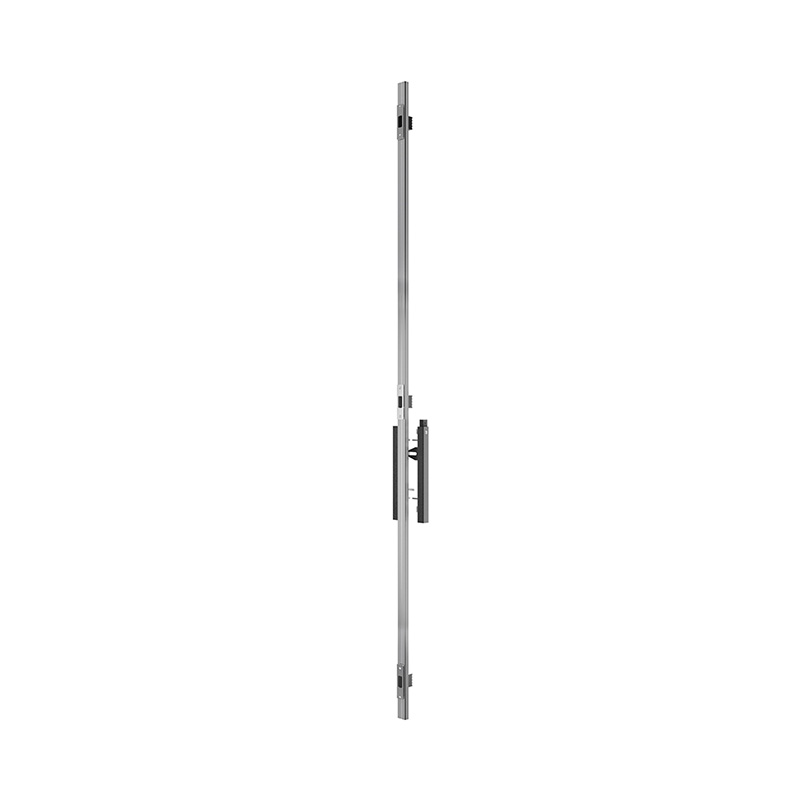

Three point locking system with anti misoperation: When locking, multiple locking points at different positions are firmly fastened into the lock seat, jointly generating strong closing pressure to maximize the elastic deformation of the sealing strip and achieve seamless sealing.
Hidden adjustable locking point: reduce installation accuracy and improves overall aesthetics.
linkage mortise lock unit: dedicated double opening sash locking scheme, achieving a viewing surface of only 69mm.
Side mounted handle scheme: simple and beautiful facade.
Application: Single track double open, two track + four sashes default applicable.
No need to separate main and second sash.
Glass configuration
Single sash can achieve a maximum area of 14 square meters：14㎡.
Glass installation adopts: internal glue+external decorative weather sealant strip: ensuring strength while improving overall aesthetics.
| Area of single sash | Glass configuration (Optional) |
| S≤4㎡ | 6G+15A+6G+15A+6G |
| 4㎡<S≤6㎡ | 8G+12A+8G+12A+8G |
| 6㎡<S≤8㎡ | 10G+27A+10G |
| 8㎡<S≤14㎡ | 12G+24A+12G |
Screen configuration

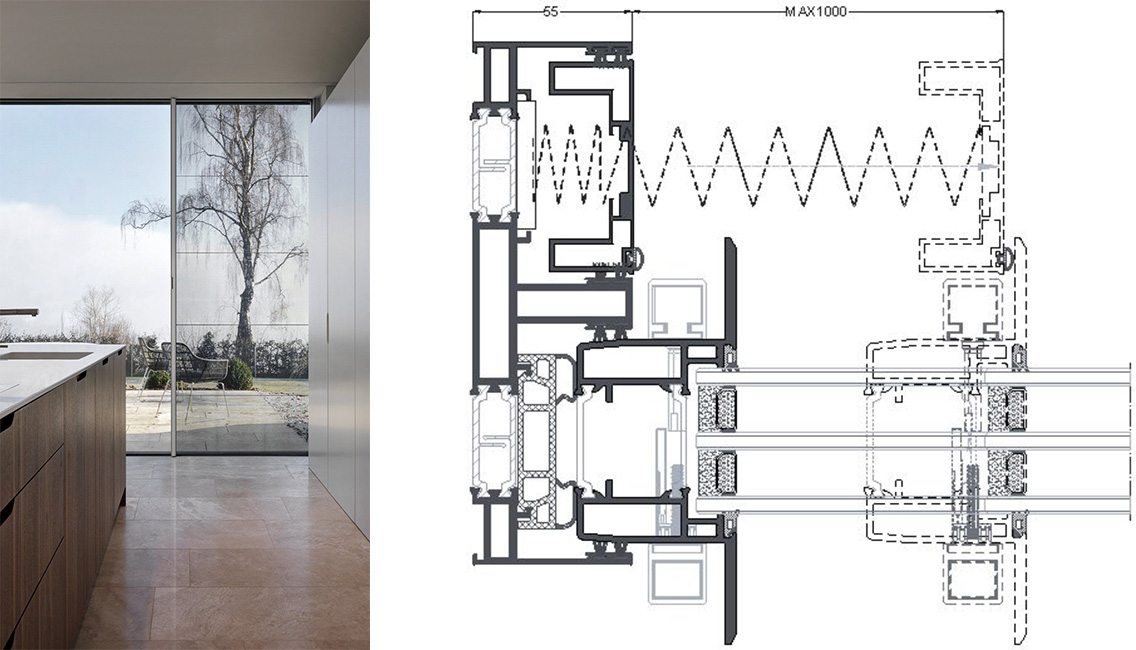

Hidden manual folding screen solution: The screen window is hidden in the frame groove, making the overall appearance beautiful.
The screen is made of 24 mesh PET material: wire diameter 0.13mm, high visibility insect proof mesh, super durable, not easy to accumulate dust and easy to clean, super strong recovery ability.
The opening size of the screen ≤ 1000mm, and the height size of the screen ≤ 2800mm.
Support two track/three track manual solutions, not available for double opening.
Optional electric sunshade solution:
Electric facade sunshade, with a variety of mosquito proof, windproof, and sunshade fabrics to choose from

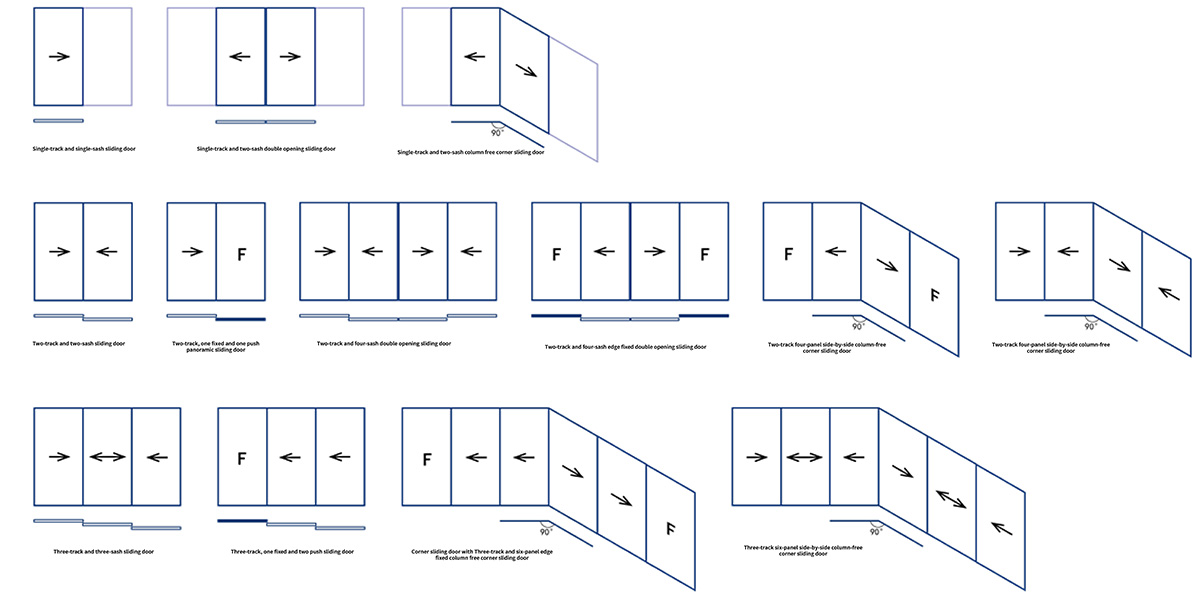

Implement multiple design schemes
Single-track and single-sash sliding door
Single-track and two-sash double opening sliding door
Single-track and two-sash column free corner sliding door
Two-track and two-sash sliding door
Two-track, one fixed and one push panoramic sliding door
Two-track and four-sash double opening sliding door
Two-track and four-sash edge fixed double opening sliding door
Three-track and three-sash sliding door
Three-track, one fixed and two push sliding door
Corner sliding door with Three-track and six-panel edge fixed column free corner sliding door
llusory Waltzes 70Series Thermal Break Panoramic Sliding Door combines cutting-edge technology with sleek aesthetics to provide an unparalleled viewing experience.
Featuring a 21mm extremely narrow viewing surface, this panoramic sliding door offers a glass visual area of up to 96%, allowing for unobstructed views of the surrounding environment. The frame embedded in the wall design further enhances the seamless integration of the door into any space, creating a minimalist and contemporary look.
The double thermal break chamber structure of the Illusory waltzes Panoramic Sliding Door not only adds to its visual appeal but also ensures exceptional durability and strength. This design feature provides added stability and security, making it an ideal choice for both residential and commercial applications.
Incorporating a vertical isotherm design, this sliding door effectively minimizes heat transfer, contributing to energy efficiency and climate control within the interior space. The flat double-rail design allows for a stable push-pull operation, while the smooth structure ensures effortless and quiet movement, adding to the overall user experience.

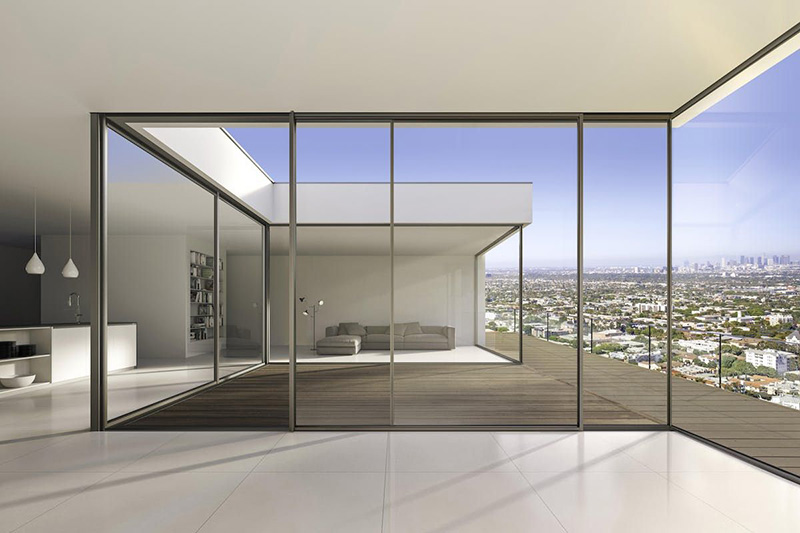

Whether used in a residential living space, a commercial storefront, or a hospitality setting, the Illusory Waltzes 70 Panoramic Sliding Door offers a perfect balance of form and function. Its sleek and modern design, combined with its advanced features, makes it a standout choice for those seeking to elevate the aesthetics and functionality of their space.
With its emphasis on maximizing natural light and unobstructed views, this panoramic sliding door is a testament to the seamless integration of technology and design. Elevate your space with the Waltz 70 Panoramic Sliding Door and experience the perfect blend of style, innovation, and performance.
