Champion Times Pro 90 Series Tilt and Turn Window
video show
Product introduction
Champion Era Pro90 Double Inward-Opening Window Frame.
The appearance has been upgraded to a flush frame-and-sash design.
The 80 series has been upgraded to the 90 series, featuring a new design with a flush frame and door that exudes simplicity, elegance, safety, and impact resistance.
It incorporates a three-seal design, encompassing sealing of the outer profile joint, sealing of the joint between the thermal break and the profile, and sealing of the inner profile joint
The central weather strip is designed with a fully welded frame: the corners of the weather strip are fusing molding welding technology, ensuring resistance to cracking and broken, an extended service life, and robust sealing performance
90 double inward-opening sashes with adjustable muntin: Tailored terminal application solutions for widened muntin(Sleeve steel)
- Engineered with a wider muntin to enhance stability and increase material strength;
- Offer a range of reinforcement design solutions, with specific reinforcements determined through calculations.

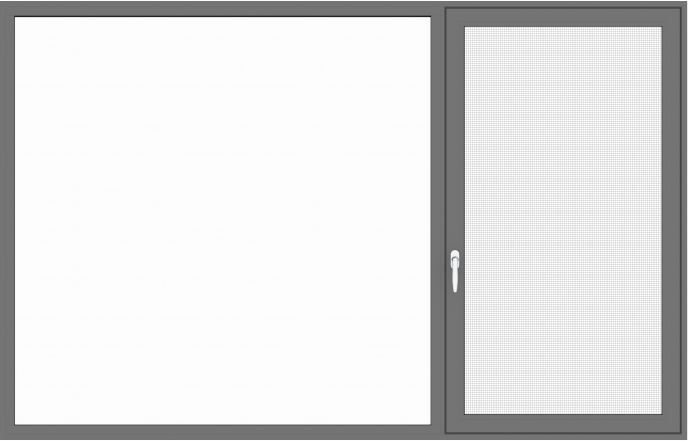

The Champion Pro90 Double Inward-Opening Window and Screen has been upgraded to the Second Generation of Frame-Free Screen Structure. The enhancements include improvements to the magnetic catch locking mechanism, a key-operated child safety lock, and a fast-release hinge, resulting in increased convenience and security.

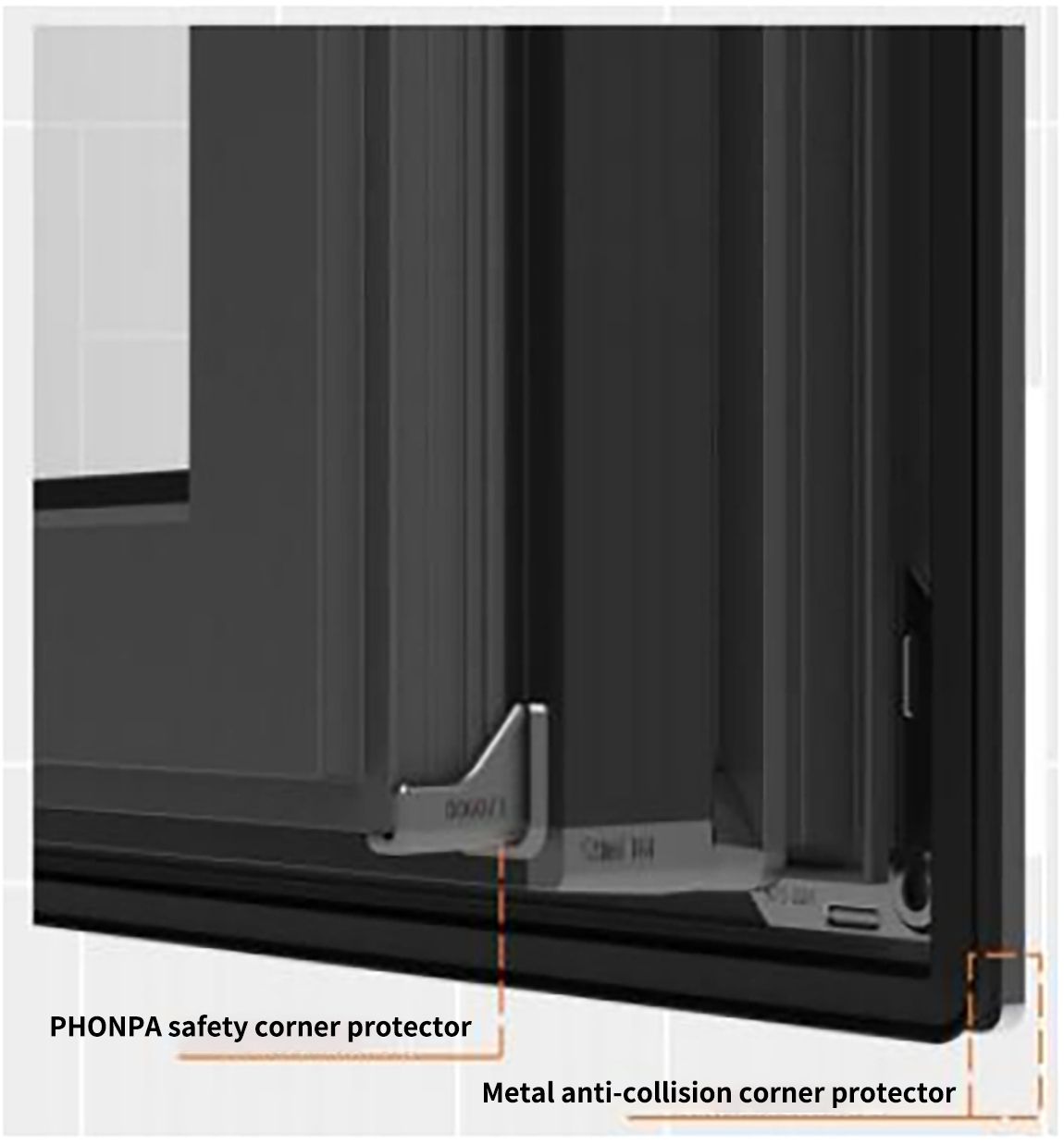

Champion Times Pro90 Double Inward Opening Window Screen Guard Corners feature PHONPA Safety Corners, which remove the sharp corners of the profile and create a three-dimensional curved surround to prevent bumps and ensure safety. The product holds a patent certificate (No. CN202221965756) for its innovative design. Additionally, it includes Metal Anti-Collision Corners that blunt the sharp edges, providing double protection.
Product parameter
Champion Times Pro 90 Series Tilt and Turn Window Hardware Configuration Table
| Hardware Configuration Table | |||||||
| Open Style | Hard ware configuration | Open angle | W （mm) | H(mm) | MAX.Weight(Kg) | Min.Lock position（mm） | Remark |
| Tilt and turn | PHONPA Custom Tilt and Turn Hardware | 90° | 450-1000 | 560-3000 | 80 | 280 | HOPPE Handle |
| ROTO Tilt and Turn Hardware | 90° | 380-1300 | 550-2000 | 80 | 300 | HOPPE Handle | |
| GIESSE Tilt And Turn Hardware | 90° | 600-1300 | 2001-2700 | 100 | 300 | HOPPE Handle | |
| HOPO Tilt And Turn Hardware | 180° | 481-1000 | 601-2400 | 80 | 260 | HOPPE Handle | |
| HOPO Electric Tilt And Turn Hardware | 90° | 600-900 | 820-2000 | 80 | 470 | Electric Special Lever Handle (unavailable for selection) | |
| SIEGENIA Inward casement Hardware | 90° | 300-1000 | 300-2400 | 80 | 150 | HOPPE Handle | |
| Inward casement | 180° Inward casement Hardware | 180° | 300-1000 | 300-2400 | 100 | 150 | HOPPE Handle |
| HOPO Tilt Hardware | 10-12° | 900-1500 | 500-2000 | 80 | No Handle | ||
Champion Times Pro 90 Series Tilt and Turn Window, the latest innovation in window design and technology. Building upon the success of the 80 series, the 90 series brings a host of new features and enhancements to elevate your window experience.
The most noticeable upgrade is the shift to a frame-sash flush structure, giving the windows a sleek and modern appearance. This not only enhances the aesthetic appeal but also ensures a safe and secure collision-free design. The three-layer sealing strip design, including outer profile overlap sealing, heat insulation strip overlap sealing, and inner profile overlap sealing, provides superior protection against the elements and enhances the windows’ thermal and sound insulation performance.
The screen hardware has been meticulously designed for convenience and safety, featuring magnetic catch, child lock, and customized removable hinges. The inclusion of a standard 26 mesh high-transparent gauze mesh, with the option to upgrade to 316 stainless steel diamond mesh, ensures optimal ventilation while keeping insects at bay. The windows are designed to withstand airtight, watertight, and wind pressure resistance, with sound insulation performance of up to 38dB and thermal insulation performance(K/U VALUE) of up to 1.4.
The widened center mullion design not only enhances the windows’ stability but also offers various reinforcement plan designs to cater to specific needs. The second generation frameless gauze sash structure introduces improved magnetic locking, keyed child safety locks, and quick-release hinges for added convenience and safety.
Safety is paramount, and the Champion Times Pro 90 Series Tilt and Turn Window incorporates PHONPA safety corner protectors to remove sharp corners and surround them with a three-dimensional arc, preventing collisions and ensuring the safety of your loved ones. Additionally, metal anti-collision corner protectors provide an extra layer of protection.
With its advanced features and meticulous design, the Champion Times Pro 90 Series Tilt and Turn Window is the epitome of modern window technology, offering not only functionality but also style and safety. Upgrade your living space with these innovative windows and experience the perfect blend of form and function.
