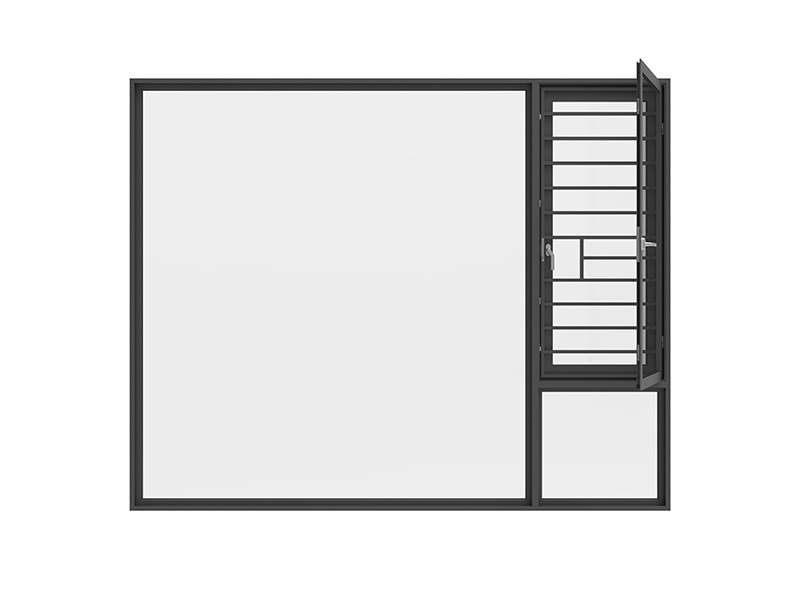

Asia Games Pro 105 Series Outward Casement Window
video show
Key Features

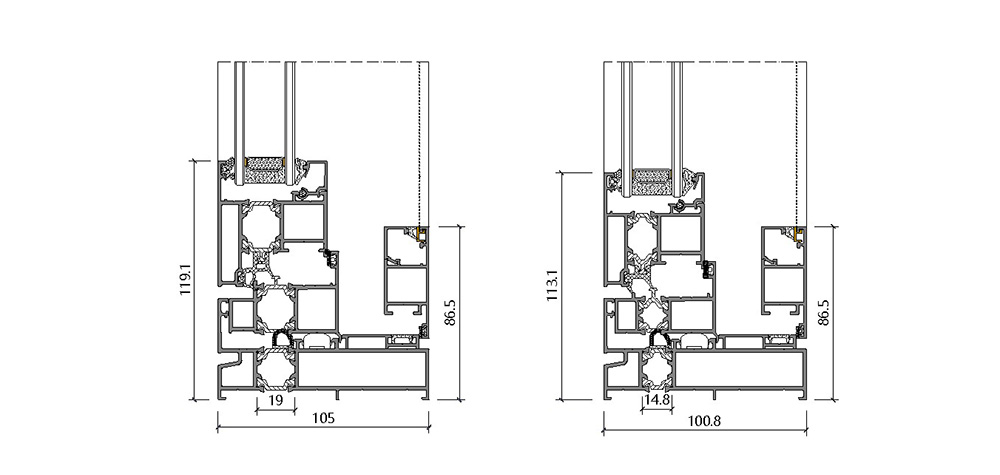

The standard thermal insulation body, originally measuring 14.8mm, has been upgraded to 19mm, resulting in a 7.3% enhancement in thermal insulation efficiency; this improvement reduces the transfer of heat and cold energy, thereby making the product suitable for a broader range of regions.
The Asia Games Pro 105 outward-opening window frame has undergone an upgrade. The frame width has been expanded by 5mm, thereby enhancing the overall product dimensions and accommodating a broader range of glass fitting specifications. Additionally, the installation seal has been refined

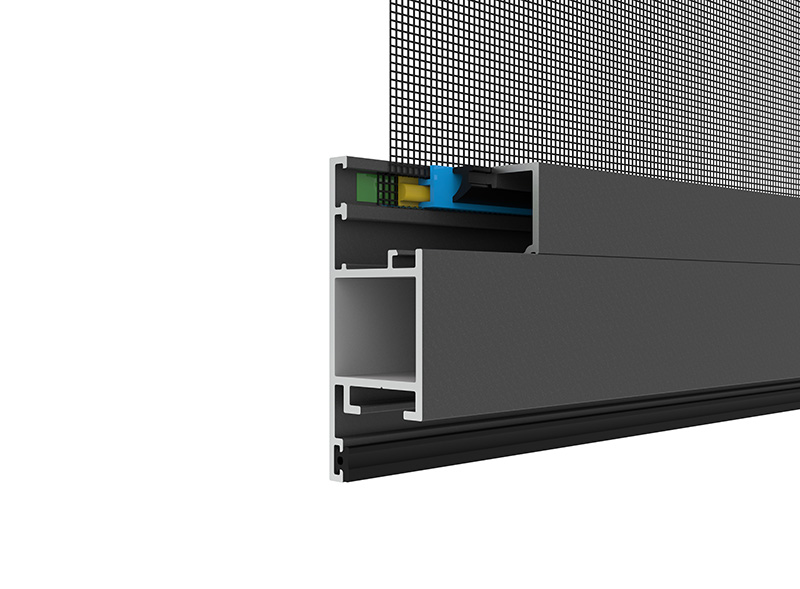

Pro 105 Outward-Opening Window Sealing Design:

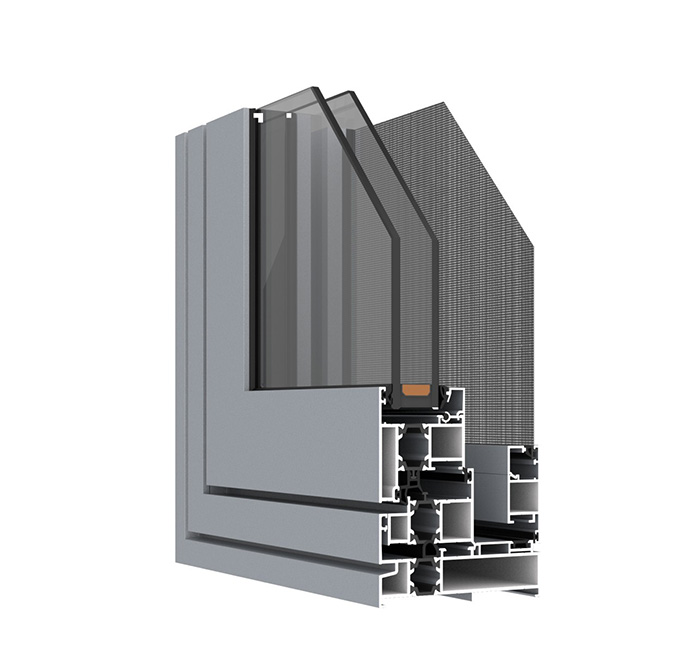

Advanced multi-stage sealing architecture: The interior stop, hardware groove, and exterior drainage channel are meticulously designed with a stepped structure, ensuring optimal waterproof performance while preventing water accumulation in the sealing chamber and facilitating smooth drainage.
EPDM Foam Sealant Strip: Featuring high resilience and exceptional weather resistance, this dependable sealant strip serves as a fundamental assurance for the sealing efficacy of windows and doors.

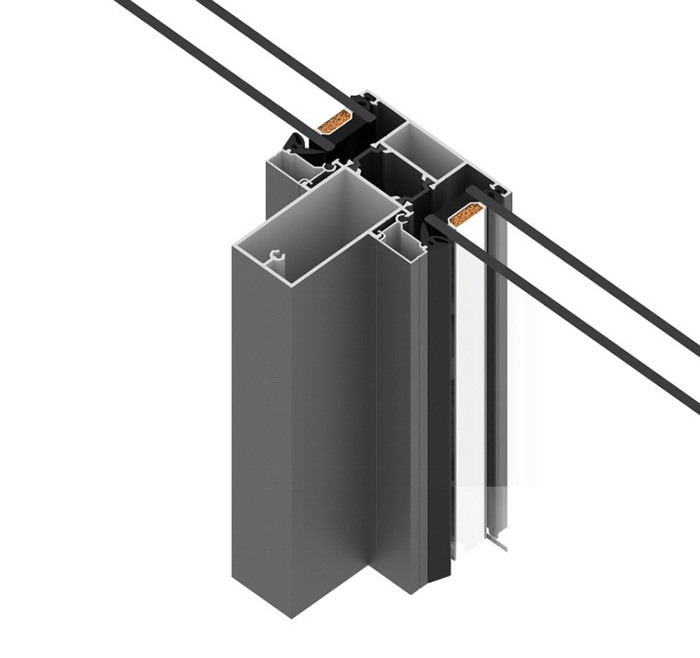

Pro 105 Outward-Casement Window Central Mullion Profile features an enhanced mullion design that utilizes a more robust and stable material, offering superior resistance to pressure from large glass panes and high wind loads
The T connection reinforcement of the mullion profile with nail slots: The junction between the mullion and the middle rail is fortified with screws, significantly enhancing the structural integrity of the window frame and addressing the issue of gaps at the interface between the middle rail and the mullion profile

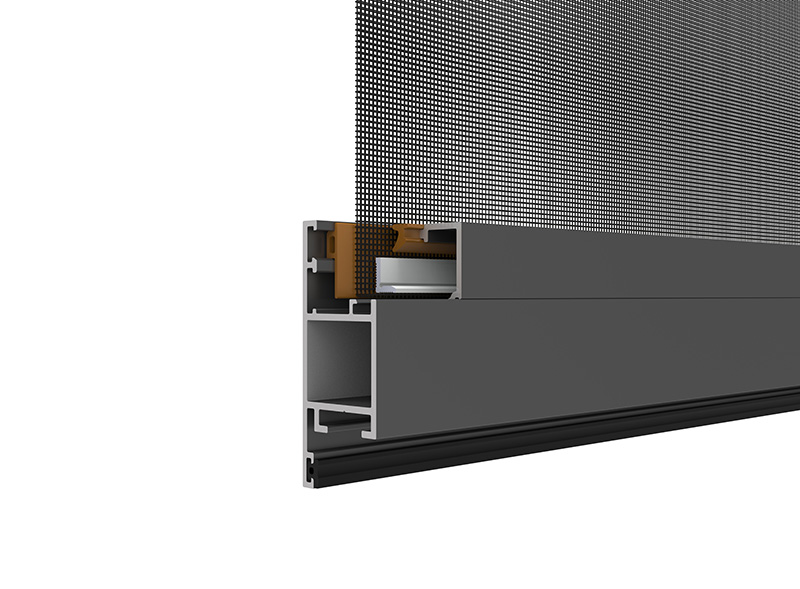

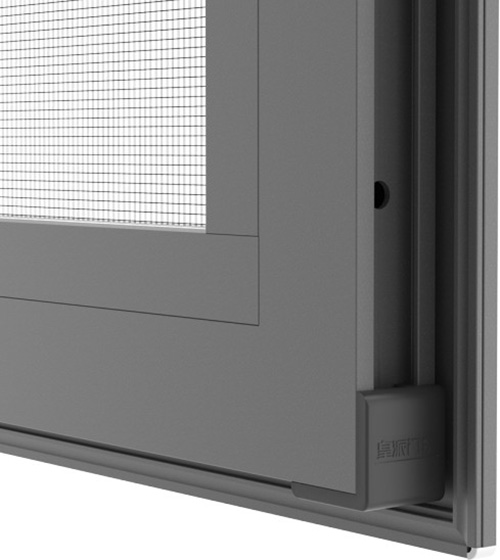

Pro 105 Window Screen sash Guard Corners feature enhanced corner protection, incorporating both soft rubber cushioning and round metal anti-collision elements at the corners adjacent to the screen handle
Asia Games 105 Series Outward Casement Window, a revolutionary addition to the world of windows. This product is designed to provide unparalleled thermal insulation, energy efficiency, and structural stability, making it a top choice for residential and commercial applications.
One of the standout features of this window is its upgraded thermal insulation body, which has been increased from the standard 14.8mm to 19mm. This enhancement results in a remarkable 7.3% year-on-year increase in thermal insulation energy efficiency. As a result, the conduction of cold and hot energy is significantly reduced, making the product applicable to a wider range of areas.
Furthermore, the width of the frame has been increased by 5mm, leading to a wider product width and a broader range of glass adaptation sizes. This improvement also enhances the product's installation sealing, ensuring a secure and airtight fit.
The Asia Games 105 Series Outward Casement Window also boasts a multi-channel ladder sealing design, which includes stepped indoor sidewalls, hardware notches, and outdoor drainage channels. This design effectively prevents water accumulation in the sealed cavity and ensures smooth drainage, providing excellent waterproofing capabilities.
In addition, the window features EPDM composite foam sealing strips, known for their high resilience and weather resistance. These sealing strips serve as the fundamental guarantee for the window's sealing performance, ensuring long-lasting reliability.
The widened middle mullion design of the window enhances its structural strength and stability, particularly when facing large glass and high wind pressure. The T-connection of the inner profile of the central mullion is reinforced with screws, effectively addressing any potential issues at the joint of the central mullion.
Moreover, the inclusion of a double corner protector for the gauze fan further demonstrates the attention to detail in the design of this window. The lower corner of the handle side of the gauze fan is covered with a soft corner protector and a metal anti-collision corner protector, ensuring both safety and durability.
In conclusion, the Asia Games 105 Series Outward Casement Window sets a new standard for excellence in thermal insulation, energy efficiency, and structural integrity. With its innovative features and meticulous design, this window is a testament to the commitment to quality and performance. Whether for residential or commercial use, this window is a reliable and efficient choice for any project.
