Asia Games 100 Series Double Inward Casement Window
video show
Key Features
Standard glass configuration：5+27A+5 Insulated glass
Stronger soundproof performance and more optional glass configurations to meet your stronger performance needs.

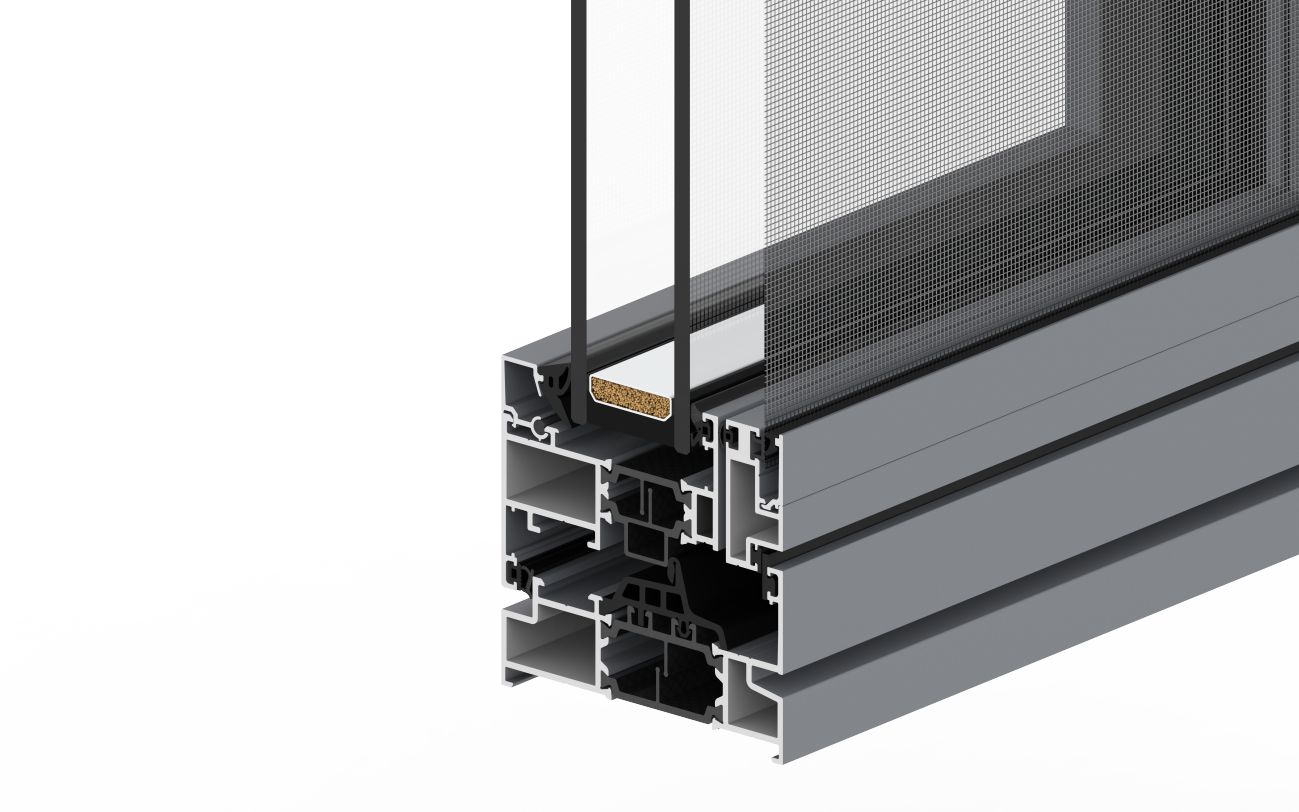

Standard configuration: 29+39mm ribbed insulation strip, better heat insulation effect
Flush design of inner and outer frame sash: outdoor glass sash and indoor gauze sash are flush with the window frame, beautiful and elegant, collision resistant and safe.

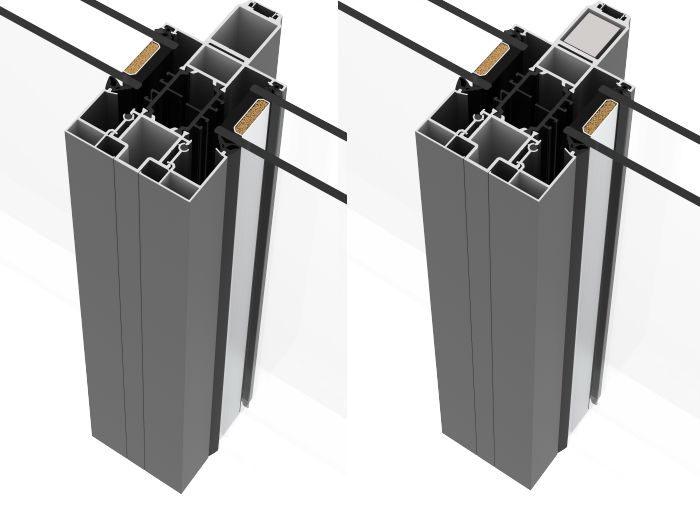

Reinforced design of muntin: There are two types of reinforced designs on the outdoor side, namely reinforced profiles and sheath steel, to meet your requirements for large windows and visibility, while ensuring the strength of the product itself and overall aesthetics.
Independently developed customized inward opening and tilt hardware: using Phonpa self-developed inward opening and tilt hinge, with a maximum flat opening angle of 90 ° and a maximum load-bearing capacity of 80kg, demonstrating Phonpa's core technical strength (180 ° hardware has not yet been developed)
Super large size application range: The maximum opening size of hardware can reach a sash width of 450-1000mm; The sash height is 560-3000mm, meeting the needs of customers for floor opening and oversized opening.

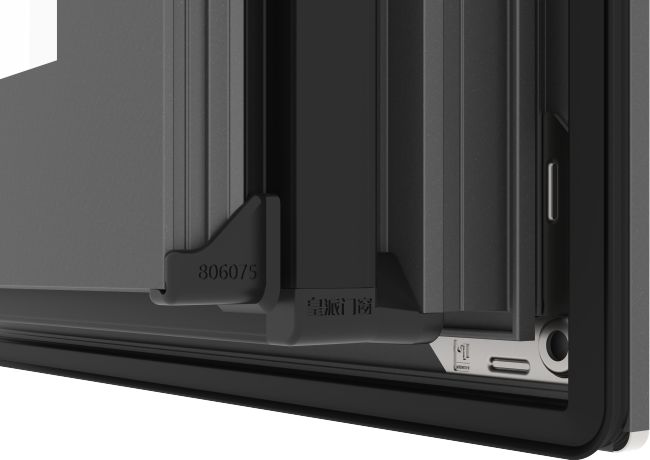

PHONPA safety corner protector: patented design, removing sharp corners of profiles, surrounded by circular arcs to prevent collisions and protect safety; Metal anti-collision corner protector: outer metal corner protector, blunted sharp corners, double protection;
Second generation frameless mesh design
Detachable hinges: convenient for disassembly, easy to clean and maintain

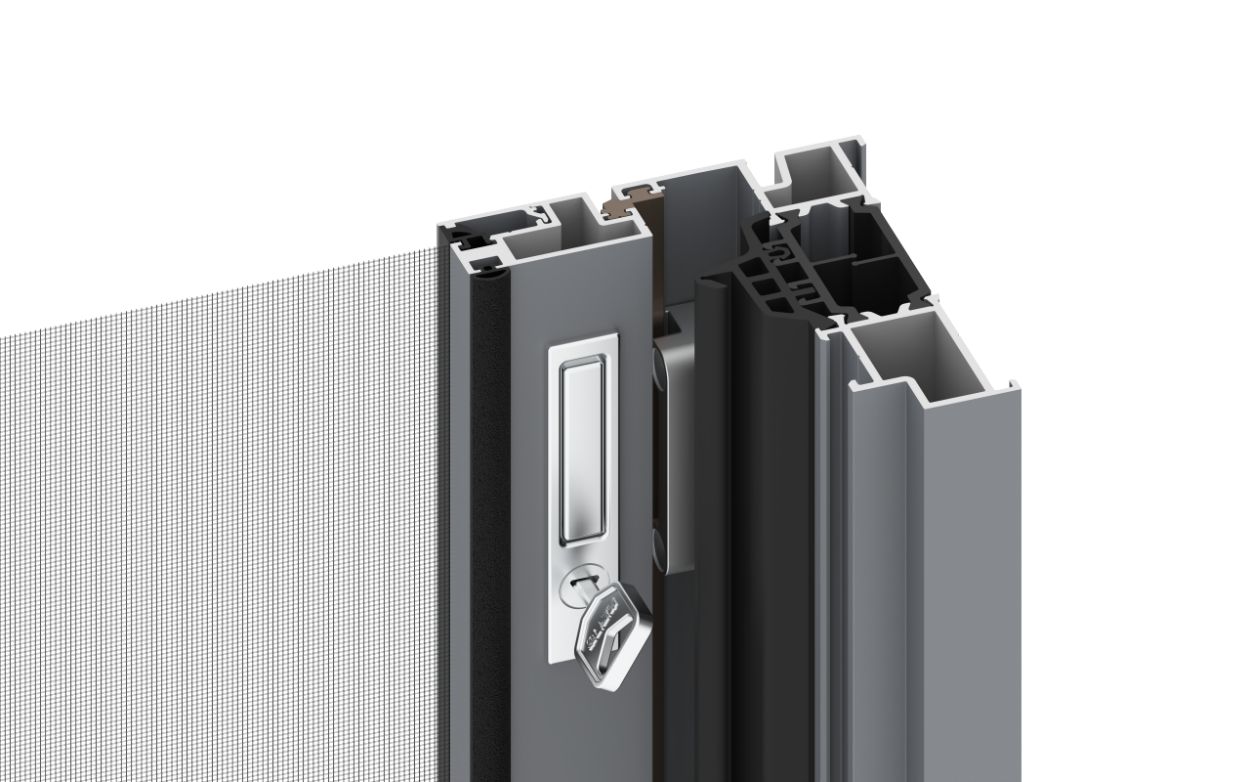

Children’s safety lock with key: easy to operate, caring for the safety of children and the elderly
Magnetic locking: Magnetic strip adsorption, stable and non loosening sealing
Integrated corner sealing strip: Not easily broken, more beautiful and sealed
Suitable for various types of mesh: Standard 26 high transparent mesh, more mosquito resistant and aesthetic; optional with 316 stainless steel diamond mesh, safer and more durable
Product parameter
Design performance: Air tightness/ Water tightness/ Wind resistance.
| Insulation strip configuration | Frame：C-39+CG-39Sash：C-29+CT-29 | |||
| Insulation strip material | PA66+GF25 | |||
| Glass configuration | 5+27Ar+5 | 5+27Ar+5Low-E | 5+16Ar+5+16Ar+5Low-E | 5Low-E+16Ar+5+16Ar+5Low-E |
| Air layer filling | argon | |||
| Glass spacer strip | Normal spacer strip | Warm border strip | ||
| Whole window U value | 2.9 | 2 | 1.8 | 1.4 |
Customized inward opening and inner inverted hardware: The maximum horizontal opening angle of the hinge is 90 °, the inner inversion distance is about 130mm, and the load-bearing is 80kg.
Super large size application range: Sash width 450-1000mm; height 560-3000mm.
| Hardware configuration sheet of Inward opening window | ||||||
| Open form | Hardware configuration | Open angle | Width size (mm) | Height size (mm) | Max. sash weight (Kg) | Min.st lock position（mm） |
| Inward opening inner inverted | Phonpa customized；Inward opening inner inverted（standard） | 90° | 450-1000 | 560-3000 | 80 | 280 |
| Shenzhen Hopo（Optional） | 90° | 600-900 | 820-2000 | 80 | 470 | |
Asia Games 100 Series Double Inward Casement Window, a premium window solution that combines innovative design, advanced technology, and superior performance to elevate your living space.
Crafted with precision and attention to detail, the Asia Games 100 Series Double Inward Casement Window offers a perfect blend of functionality and aesthetics. Its standard configuration includes a 5+27A+5 insulated glass configuration, providing exceptional sound insulation performance and a wide range of glass options to meet your specific wall performance needs.
Designed for optimal energy efficiency, this window features a 29+39mm ribbed insulation strips, ensuring better insulation effects and helping to maintain a comfortable indoor environment while reducing energy costs.
The flush design of the inner and outer frame sash adds a touch of elegance to your space, with outdoor glass sash and indoor gauze sash seamlessly blending with the window frame. This not only enhances the overall aesthetic appeal but also ensures anti-collision and safety features, making it an ideal choice for homes and commercial spaces.
The Asia Games 100 Series Double Inward Casement Window is equipped with a reinforced design of the middle mullion, featuring reinforced profiles and steel pipes on the outdoor side. This design not only meets the requirements for large windows and wide views but also ensures the strength and durability of the product, while maintaining its aesthetic appeal. The patented design removes sharp corners from the profiles, replacing them with a solid arc surround, preventing collisions and enhancing safety.
To further enhance its durability and safety features, the window is equipped with metal anti-collision corner protectors. These outer metal corner protectors ensure that sharp corners are blunted, providing double protection and peace of mind for you and your family.
With its exceptional performance, elegant design, and focus on safety, the Asia Games 100 Series Double Inward Casement Window is the perfect choice for those seeking a premium window solution that combines style, functionality, and peace of mind. Elevate your living space with the Asia Games 100 Series Double Inward Casement Window and experience the perfect blend of innovation and sophistication.
